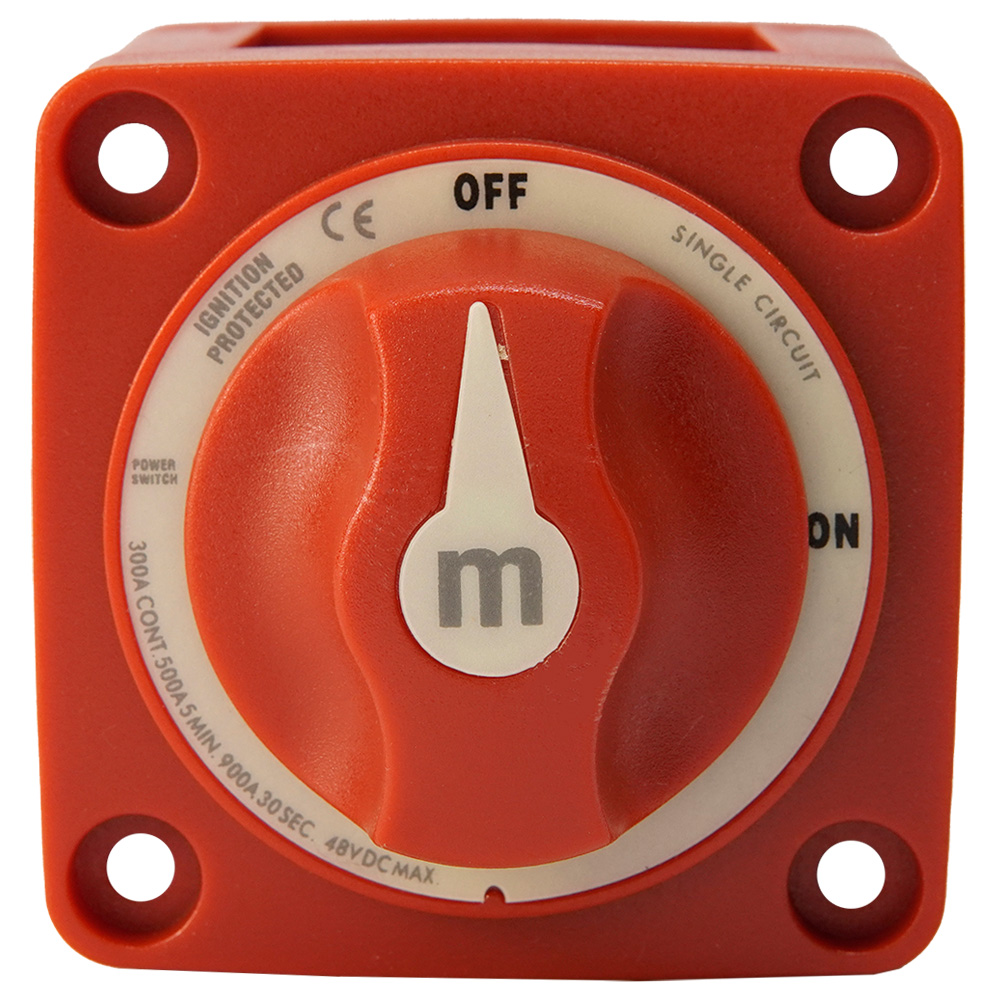

Egis M-Series 300A Battery Switch Off/On Knob Actuator
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$49.62
M-Series 300A Battery Switch Off/On Knob Actuator
Sealed Against Dust & Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.
Ignition Protected - Safe for installation in closed compartments with potential explosive gases.
Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.
Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.
Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.
Specifications:
- Maximum Voltage (Single Circuit): 48 Vdc
- Maximum Voltage (Selector / Dual Circuit): 32 Vdc
- Stud Size And Thread: 3/8”-16
- Terminal Stud Torque: 120 in-lbs (13.6 N-m)
- Ring Terminal Size Acceptance: 3/8” (M10)
- Mounting Holes: #10 Screw
- Live Switching Rating: 25 Amps
- Ignition Protection Rating: SAE J1171 / ISO 8846
- Bulkhead / Panel - Mounting Hole Size: 2-5/8" / 2-5/16"
- Cable Size to Meet Rating: 4/0 AWG
Documentation
| Quick Guide | Download PDF |
|---|
