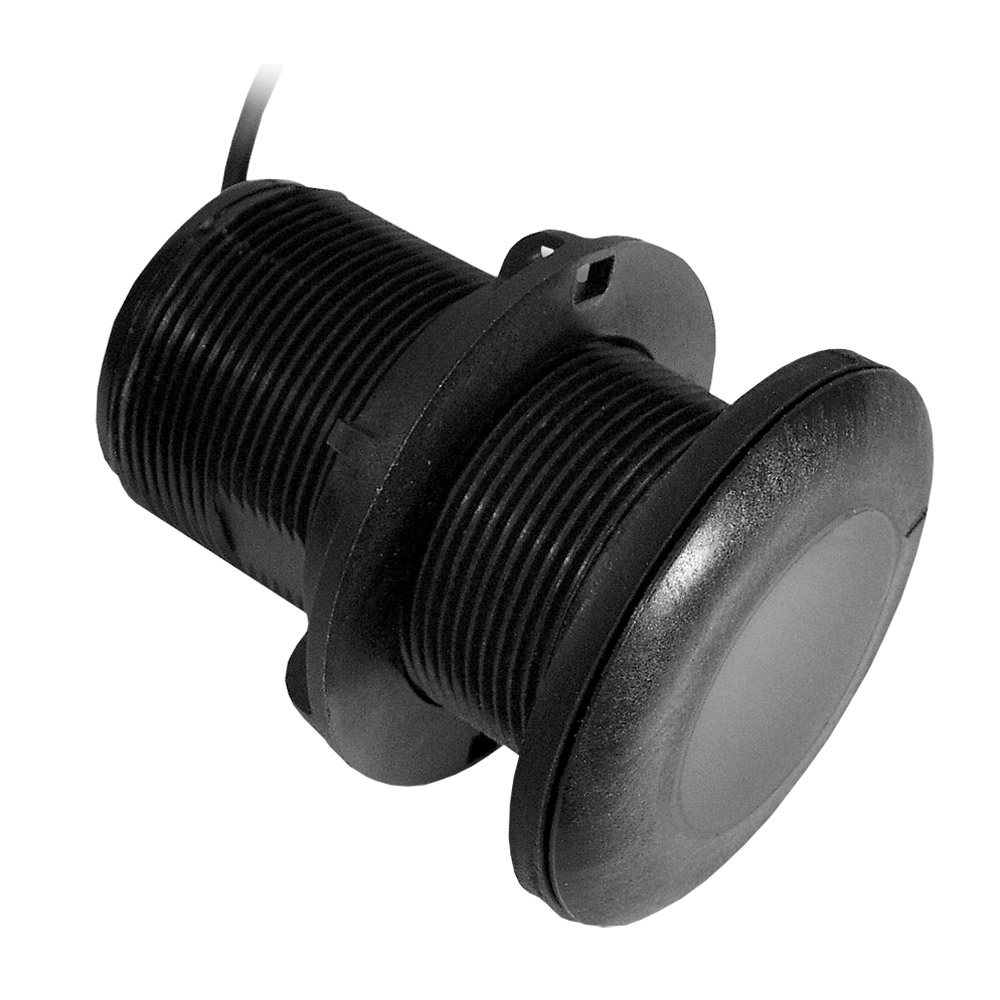

Garmin P19 Nylon 12° Tilt Transducer - 8-Pin

Tilted Element™ Thru-Hull

Minimize Your Drag
The P19 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echosounding up to 206M (700'). These nearly flush units minimize drag as only 5mm (2/10") of the housing extends outside of the hull. The plastic P19 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for moreaccurate depth readings.

Applications

• Cruising powerboats and sailboats

• Sailboats

Features

• Depth only or Depth and temperature

• Fixed 12° tilted versions for 8° to 15° hull deadrise

• Right angle cable exit offers low headroom and protection when transducer is stepped on

• Included rubber washer allows tightening of the hull nut to irregular hull surfaces

• Housings are ABYC H-27 compliant

• Optional temperature sensor

• Plastic housing

• Boat Size: Up to 9M (30')
