Harken 13mm High-Load Trolley w/2X M4 Tapped Holes
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$129.83
Back to: Harken

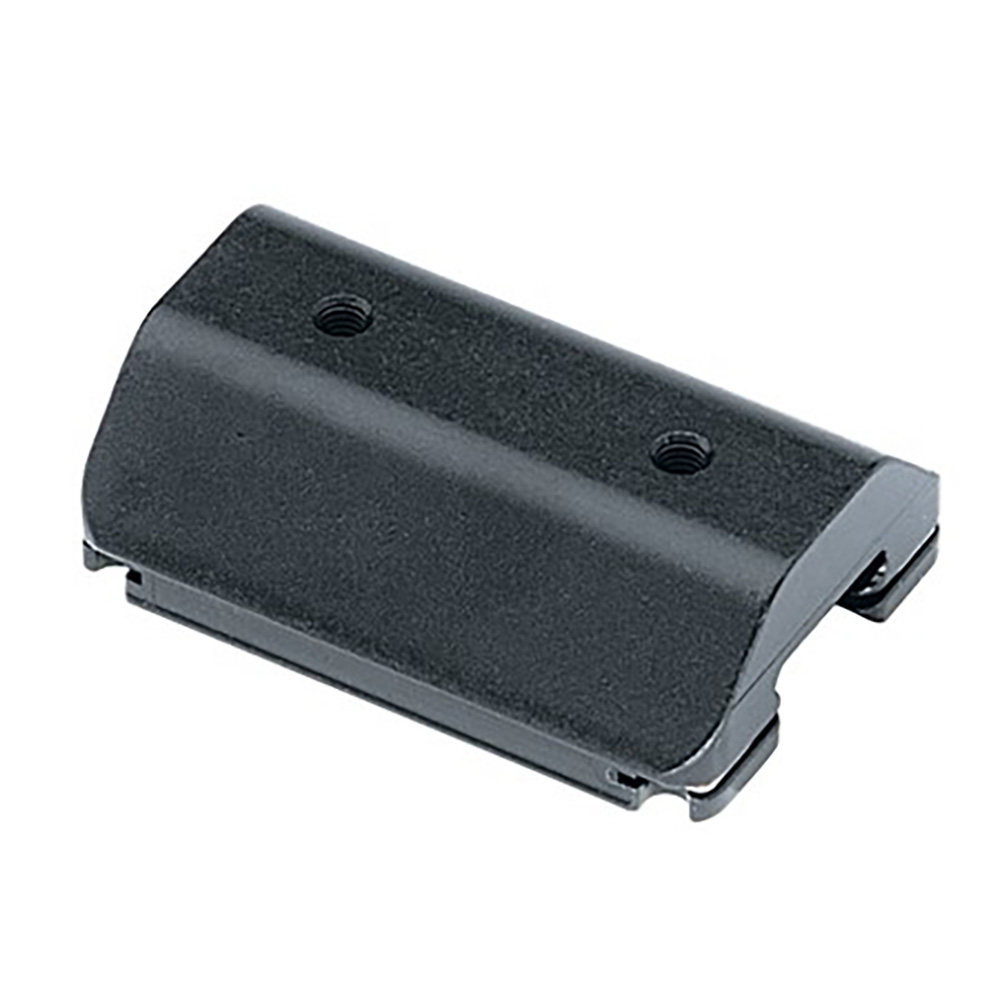

13mm High-Load Trolley with 2X M4 Tapped Holes
This trolley features recirculating ball bearings housed in strong, lightweight, corrosion-resistant aluminum for dependable, low-friction linear travel. Use for moving loads and equipment, hoisting, and moving stage equipment, and architectural solutions.
Features:
- High-load trolley with two M4-tapped holes on top
- Torlon® ball bearings handle high loads, reducing friction so the trolley moves smoothly along the rail
- Retaining clips keep ball bearings captive when the trolleys are removed for maintenance
Specifications:
- Length (mm): 56 mm
- Length (in): 2-3/16 in
- Width (mm): 40 mm
- Width (in): 1-9/16 in
- Weight (g): 57 g
- Maximum Rated Load (kN): 1.4 kN
- Height (mm): 19 mm
- Height (in): 3/4 in
- Weight (oz): 2.01 oz
- Breaking Load (kN): 6.7 kN
Documentation
| Installation Guide | Download PDF |
|---|
