Hawkeye DepthTrax In-Dash Digital Depth & Temp Gauge - Thru-Hull
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$250.19
Back to: HawkEye

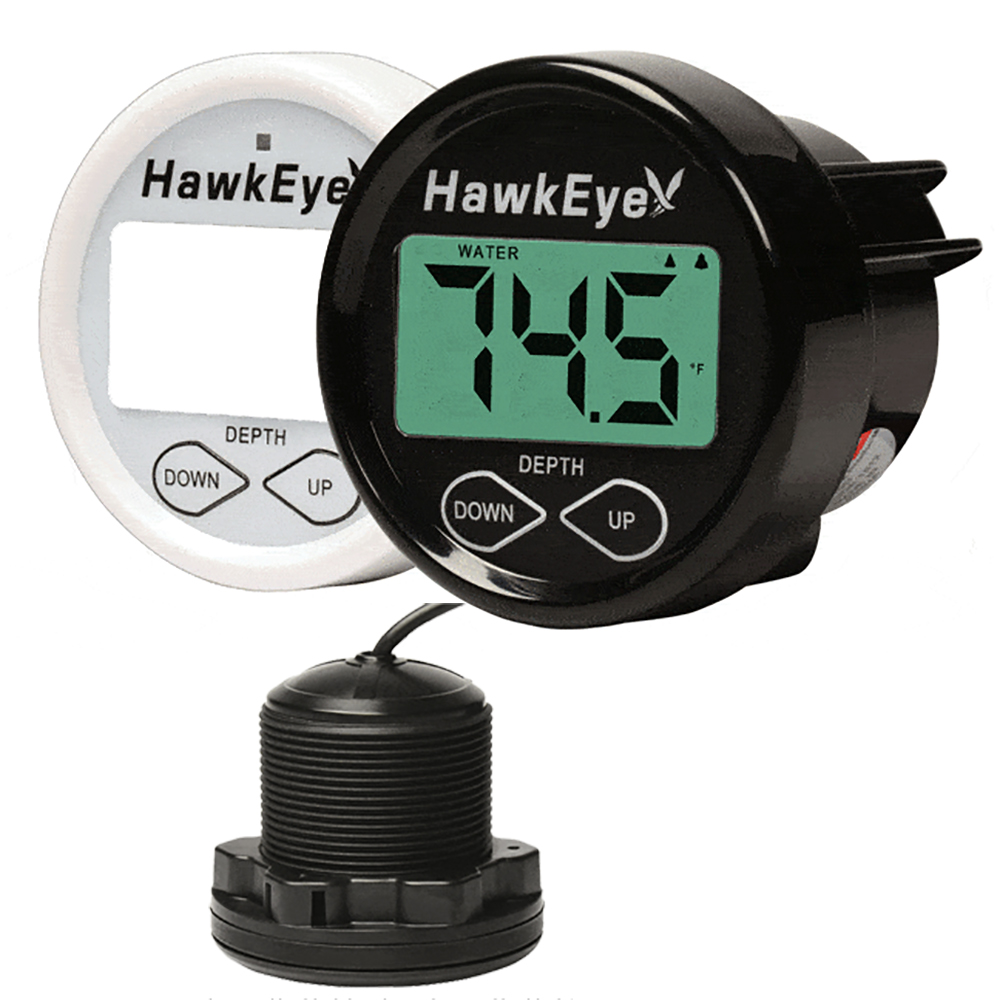

DepthTrax Dash Digital Depth and Temp Gauge - Thru-Hull
The DepthTrax 2BX includes all the advanced sonar, depth alarm, and keel offset capabilities of the DepthTrax 2B, but also integrates dual temperature displays and an AIRMAR®, ultra-sensitive, high-performance thru-hull transducer. With a simple press of a button on the DepthTrax 2BX display produces instant access to water or air temperature readings via integrated sensors in both the head unit and the transducer.
The DepthTrax 2BX delivers a combination of performance and affordability unrivaled in any other depth sounder.
Features:
- Algorithmic programming significantly reduces false readings and produces unmatched precision
- EasyTouch programming allows one-touch access to the user settings
- User programmable keel offset automatically adjusts depth readings for vessels’ draft requirements
- Selectable Imperial or Metric readout
- Dual Upper and Lower depth alarms can be set throughout the full depth range
- 3-Stage Advanced Warning System™ clearly signals an alarm condition with an audible alarm, LED and LCD indicators with one-touch alarm muting
- Displays air & water temperature in °F or °C
- Automatic memory retention of all user settings
- Removable face system - includes White & Black faceplates and White/Black trim rings
- No glare, polarized LCD icon display with storage sun cover
- SoftGlow™ backlit display and programming keys - low intensity, low temperature lighting prevents eye strain and condensation while providing unparalleled nighttime viewing
Technical Specifications:
- Gauge Dimensions (Diameter x Depth) - 2" x 1.75" (51 x 45mm)
- Screen Dimensions (Height x Width) - 1.65" x .87" (42 x 22mm)
- Gauge Cut-out Size - 2"
- Operating Temperature - 0 to 160° F (-18 to 71°C)
- Depth Range - 2.5' to 600' (.7 to 180 M)
- Transducer Type - Thru-Hull
- Transducer Cut-out Size - 2"
- Transducer Frequency - 200kHz
- Transducer Beam Angle - 14°
- Transducer Cable Length - 30' (9 M)
- Power Requirement - 12 - 14 VDC
In the Box:
- Gauge
- Bezel/Faceplate - Black and White
- Display sun cover
- Mounting hardware
- Transducer - thru-hull w/30' cable
- Instruction manual
*Sold as an Individual
Documentation
| Owner's Manual | Download PDF |
|---|
