Lopolight 360-Degree Pro Red Nav Light - 2NM - Black Housing
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$1,066.17

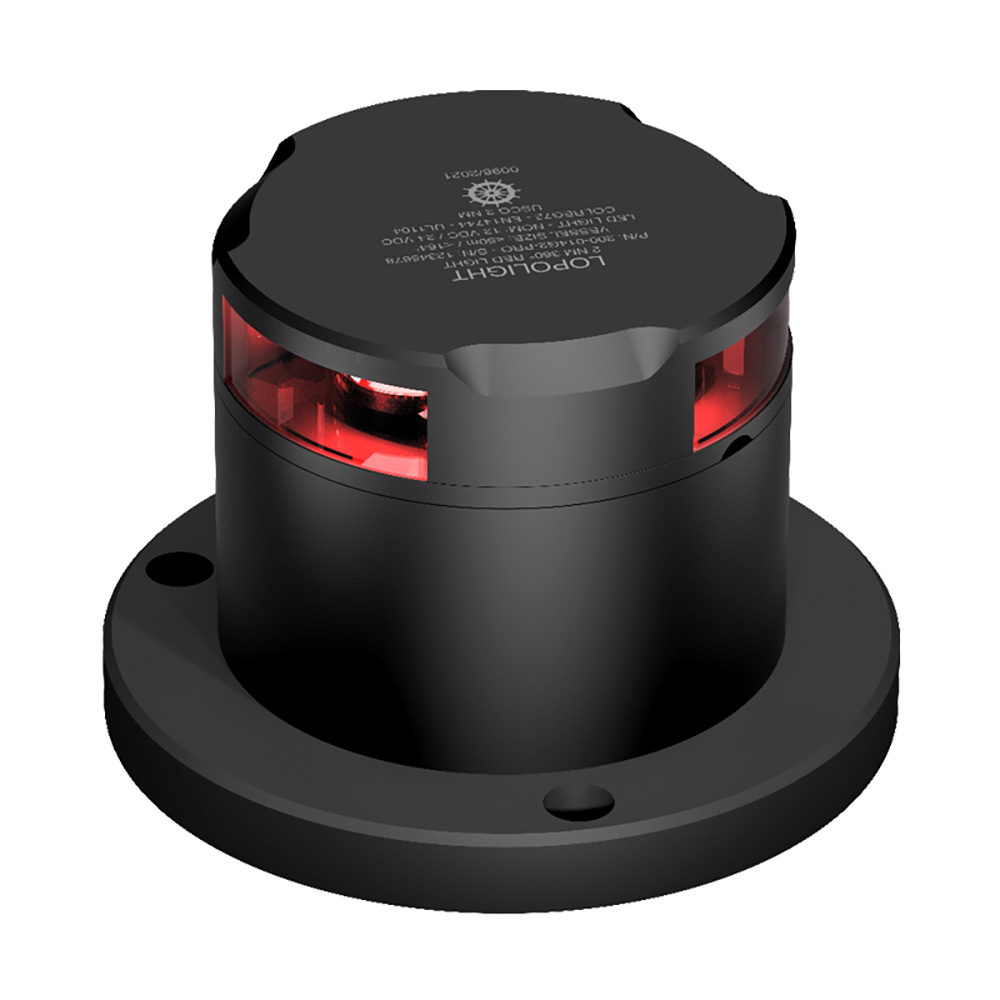

360-Degree Pro Red Nav Light - 2NM - Black Housing
This 360-degree navigation light has a red color and black housing while having up to 2 nautical miles of visibility.
Features:
- Horizontally mounted on POM base (IP68)
- Side cable direction
- Included HDPE base plate
- Quality Cable Glands (2 sizes Included):7-13mm (1/4"-1/2") cable diameter & 4.5-10mm (5/32"-3/8") cable diameter
Specifications:
- Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
- Mounting: Horizontal
- EAN: 5704438012134
- Min. Feed Wire Gauge: 0.5mm2 AWG22
- Light Color: Red
- Intensity: >5.4cd
- Visibility: 2NM
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- IP rating: IP68
- Connection: Plug connector
- Current Consumption (mA @ 24VDC): 85
- Current Consumption (mA @ 12VDC): 150
- Weight: 1 kg (35.27 oz)
- Dimensions Metric: Ø92,5mm x 75mm
- Dimensions Imperial: Ø3.6 x 2.9
- Operating Temperature: -25 degrees C to 55 degrees C
- Operating Voltage: 10-32VDC
- Power Draw (W): 2,1
- Vessel Size: Under 12M,12-20M,20-50M
Documentation
| Quick Guide | Download PDF |
|---|---|
| Installation Guide | Download PDF |
