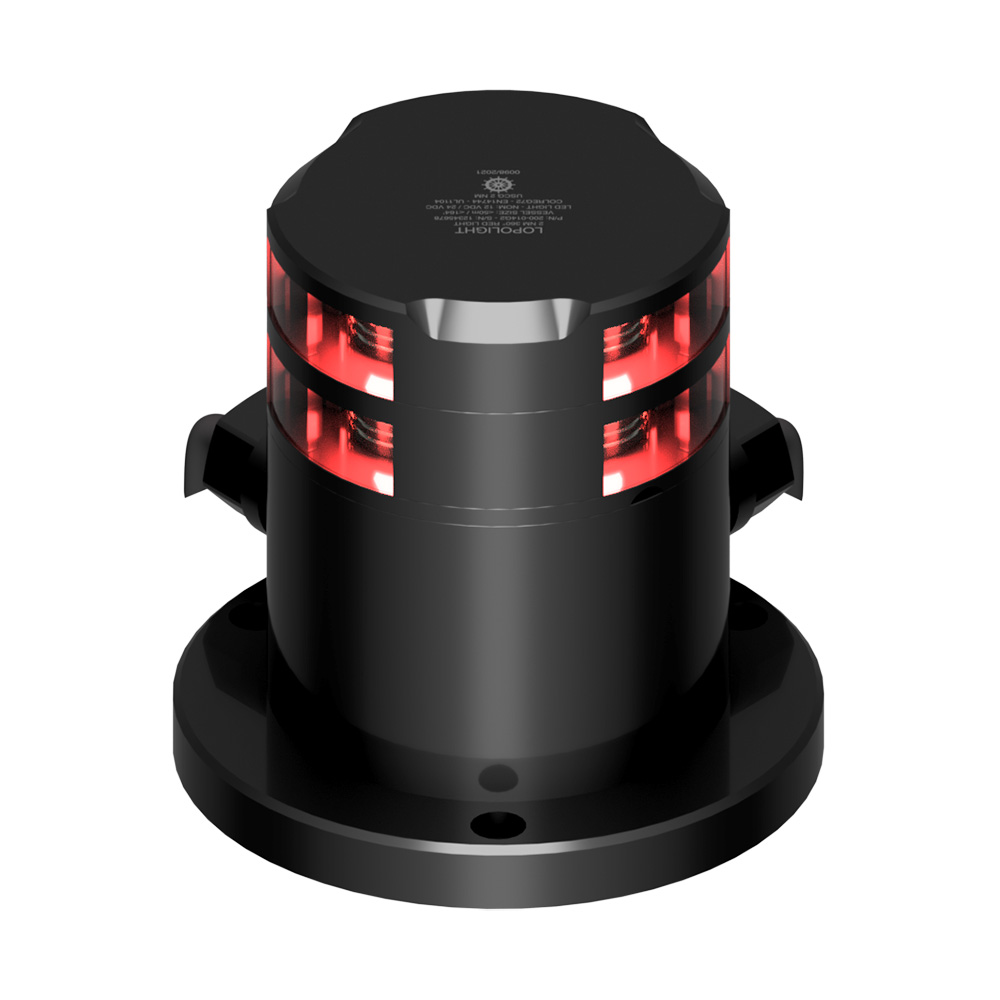

Lopolight 3nm Double Stacked Ice-Class 360 Degree - Red Light
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$2,724.18
3nm Double Stacked Ice-Class 360 Degree - Red Light
Features:
- Built-in De-icing function
- Horizontally mounted on 400-037 alu base (IP68)
- Cable direction side
- Incl. HDPE base plate
- Quality cable glands - 3 sizes included:
- 9-17mm (3/8"-11/16") cable diameter
- 7-13mm (1/4"-1/2") cable
Specifications:
- Light Color: Red
- Dimensions metric: Ø92,5mm x 112mm
- Certification: This Navigation Light is certified by DNV, the Declaration of Conformity and the certificates can be found on www.lopolight.com under Support
- Intensity: >15cd
- Dimensions imperial: Ø3.6" x 4.4"
- Approved to: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
- Visibility: 3nm
- Operating temperature: -60°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 20-32VDC
- EAN: 5704438012370
- IP rating: IP68
- Power draw (W): 2,9
- Connection: Plug connector
- Current consumption (mA @ 12VDC): 210
- Current consumption (mA @ 24VDC): 120
- Vessel size: Over 50M
- Min. feed wire gauge: 1.5mm2 AWG18
- Weight (Kg): 1.52 Kg
- Weight (Oz): 53.61 Oz
