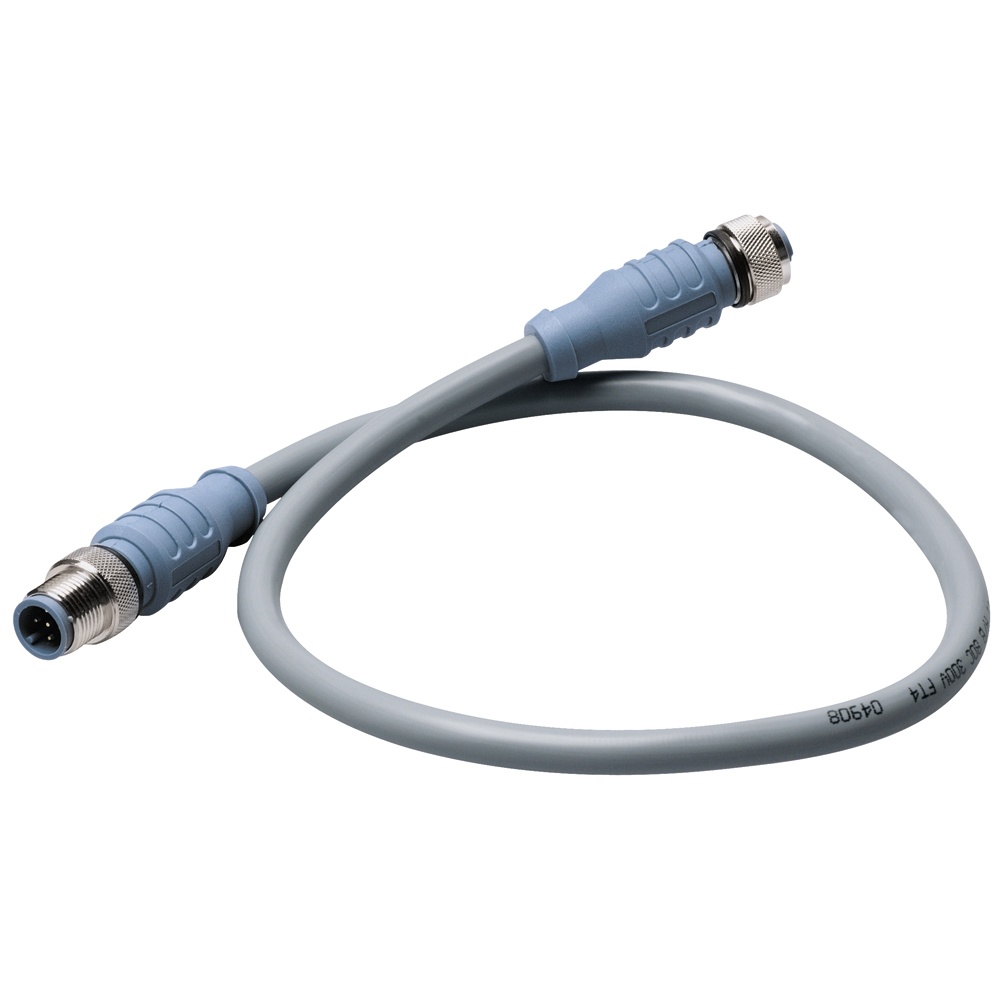

Maretron Micro Double-Ended Cordset - 6 Meter
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$83.40
Mechanical
Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
Contact Mat/Plating: Brass/Gold
Coupling Nut Mat/Plating: Brass/Nickel
Connector Outside Diameter: 0.59"
Electrical
Current Rating: 4.0 Amps
Voltage Rating: 250 V
Cable
Outer Jacket Mat/Color: PVC/Gray
Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
Environmental
Protection Class: IEC IP68, NEMA 1,3,4,6P
Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
Approvals
(Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
AWM 80 deg C 300V
(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
AWM I/II A/B 80C 300V FT4
NMEA: NMEA 2000 Approved
