Maxwell RC10-8 Capstan 12V Windlass - 5/16" Chain & 5/8" Rope
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|

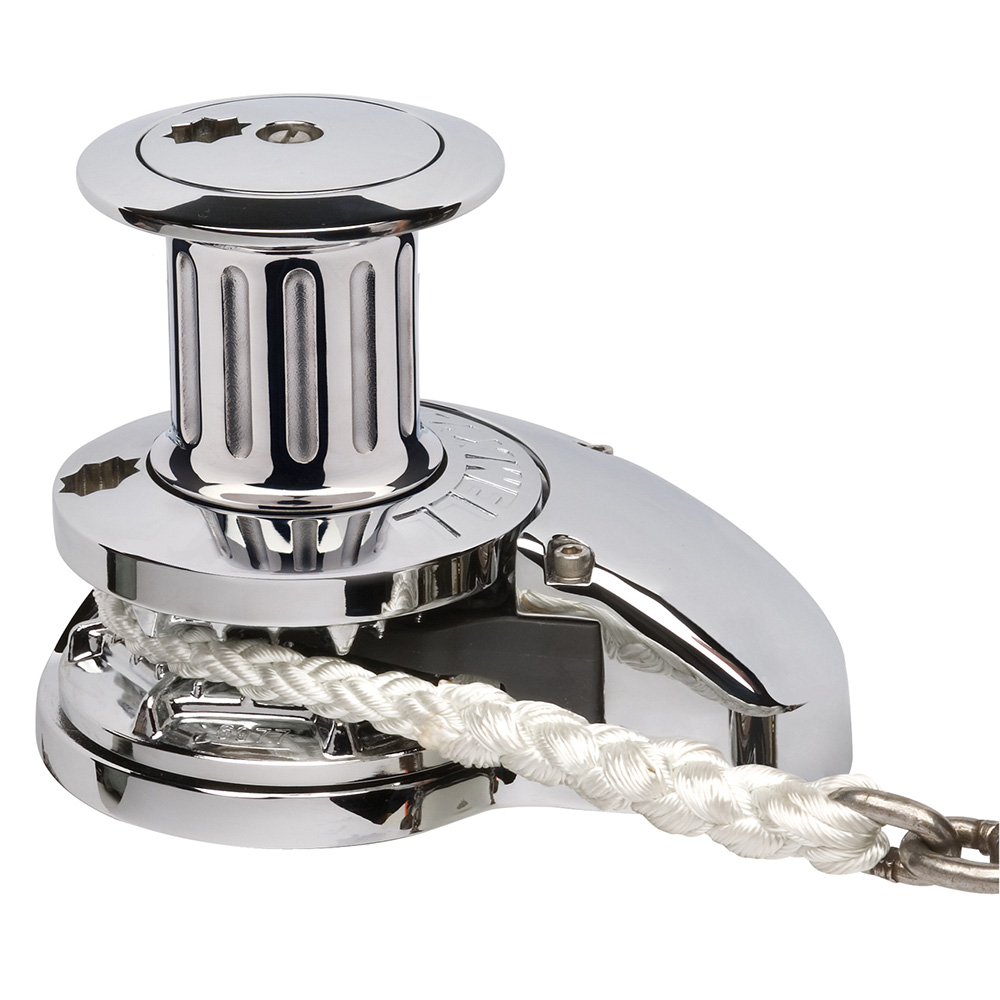

RC10-8 Capstan 12V Windlass - 5/16" Chain & 5/8" Rope
The stainless steel (AISI 316) RC10 Series rope/chain windlass is part of Maxwell’s upper mid-range line-up and is suitable for boats ranging from 9m (30ft) to 14m (48ft). The RC10-8 is a second-generation rope/chain windlass and is a favorite choice for cruising yachts, launches, pilothouse vessels, and light commercial operators. The intentionally simple design yields excellent longevity and performance figures and has contributed to a well-earned reputation for reliability.
The patented Wave Design™ rope/chain gypsy (chain wheel) is able to accommodate a wide range of chain pitch differences (both imperial and metric) within the RC10’s specified chain size diameters.
Features:
- Works just as effectively with all-chain rode
- The gearbox can be removed by hand and without tools for easy maintenance and inspection
- Full disassembly capability of the top works utilizing only the handle provided and an Allen key
- Manual override and ‘Free Fall’, using the emergency crank/clutch handle provided
- Sealed oil bath and marine-grade hard anodized, alloy gearbox provides maximum output via a precision worm and worm wheel
- Every Maxwell RC10 automatic rope/chain windlass comes with top works, motor/gearbox and dual-direction solenoid
- The unique spacer tube design allows for installation through virtually any deck thickness, and the multiple mounting positions and self-aligning gearbox ensure optimal orientation in virtually all installation situations
Specifications:
- Maximum Pull: 1540 lbs. (700 kg)
- Static Hold: 3300 lbs. (1500 kg)
- Chain Size: 5/16 in. (8 mm)
- Rope Size (Nylon): 9/16 in. – 5/18 in. (14 mm – 16 mm)
- Chain Speed (Anchor Retrieval): 79 ft/min (24 m/min)
- Rope Speed (Anchor Retrieval): 65 ft/min (20 m/min)
- Power Supply (DC): 12 VDC
- Motor (Watt): 1000 W
- Net Weight: 42 lbs (19 kg)
- Hydraulic Pressure: 2000 PSI (138 Bar)
- Hydraulic Flow: 5.3 USgal/min (20 l/min)
- Net Weight (Hydraulic): 42 lbs (14 kg)
