Newmar ES-7D Elite DC Panel
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$1,510.93

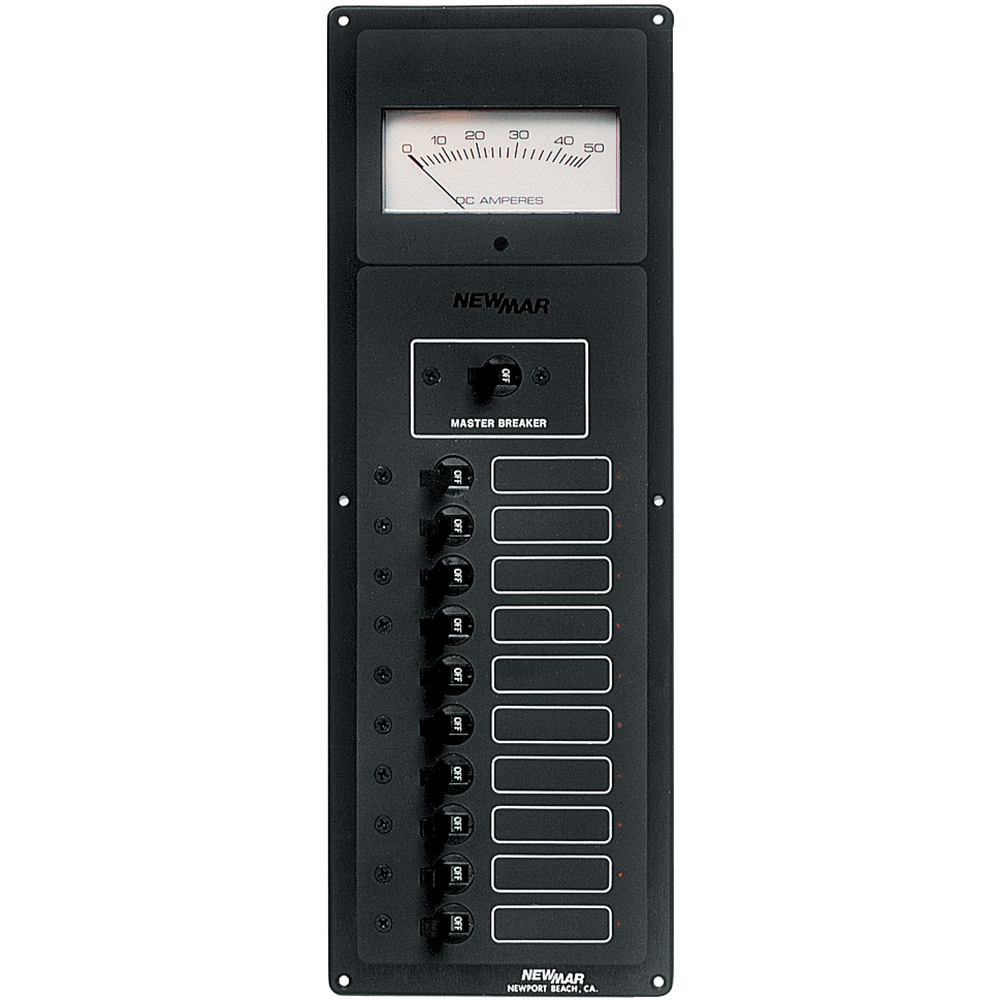

ES-7D Elite DC Panel
This panel is designed for expanding AC or DC circuit capacity on any Elite Series panel, or it may be used as a stand-alone load center.
Features:
- AC (120/240V) or DC (12/24V) master breaker (double pole AC 50 amp* standard, 30 amp optional, or DC 100 single pole amp standard; 50 or 75 amp optional
- 16 branch circuit capacity, 12 installed standards: ES-7A: 2-10A, 5-15A, 5-20A ES-7D: 2-5A, 3-10A, 5-15A, 2-20A
Specifications:
- Size (W x H x D): 5.25 x 15 x 4 inches
- Weight: 7 lbs. (3.2 kg)
Note: 50-amp master is OK for use on 230 VAC line-to-line systems. For 230 VAC line-to-neutral systems, 30 amp is the maximum master breaker value.
