Quick Prince DP3 1012 Windlass - 1000W - 12V - 10mm (3/8") Gypsy
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$4,311.36
Back to: Quick

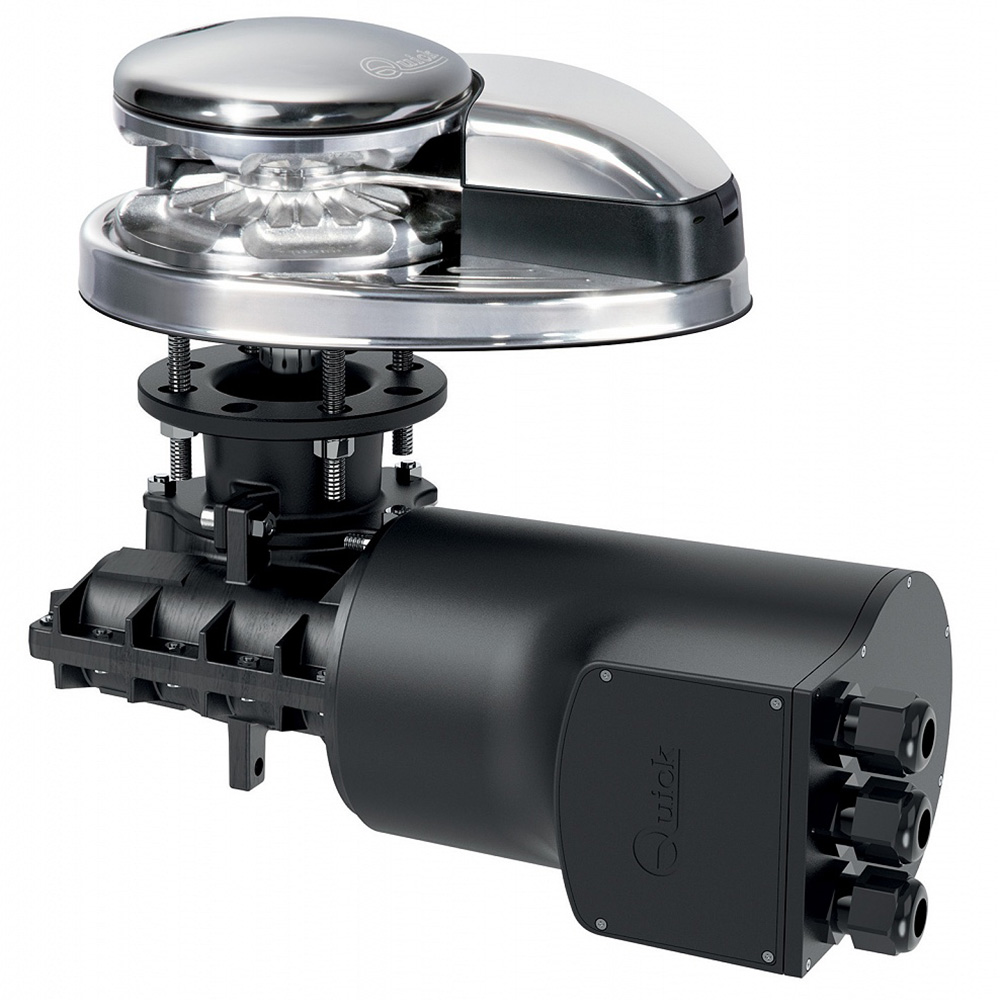

Prince DP3 1012 Windlass - 1000W - 12V - 10mm (3/8") Gypsy
This Quick Prince windlass is a vertical-axis windlass.
Application:
- For boats 10-14 m (33-46 ft.)
Features:
- No drum
- Vertical windlasses
- Stainless steel Aisi 316 base and anodized aluminum in hard oxide
- Rope and chain on a single gypsy
- Integrated sensor and a magnet for chain counter
- Manual Free-Fall system
- Supplied with pressure lever
- Inspection lid
- Motor watertight to IP67
- Technopolymer Gearbox (1000W)
Specifications:
- Rope: 5/8 in. (15,8 mm)
- Motor Power: 1000 W
- Motor Supply Voltage: 12 V
- Maximum Pull: 1000 Kg / 2204 lb
- Maximum working load 370 Kg / 816 lb
- Working Load: 120 Kg / 264 lb
- Current Absorption @ Working Load: 140 A
- Maximum Chain Speed: 39,6 m/min / 129.2 ft/min
- Maximum Chain Speed @ Working Load: 20,4 m/min / 66.9 ft/min
- Weight - DP3 - [without drum]: 17,4 Kg / 38 lb
