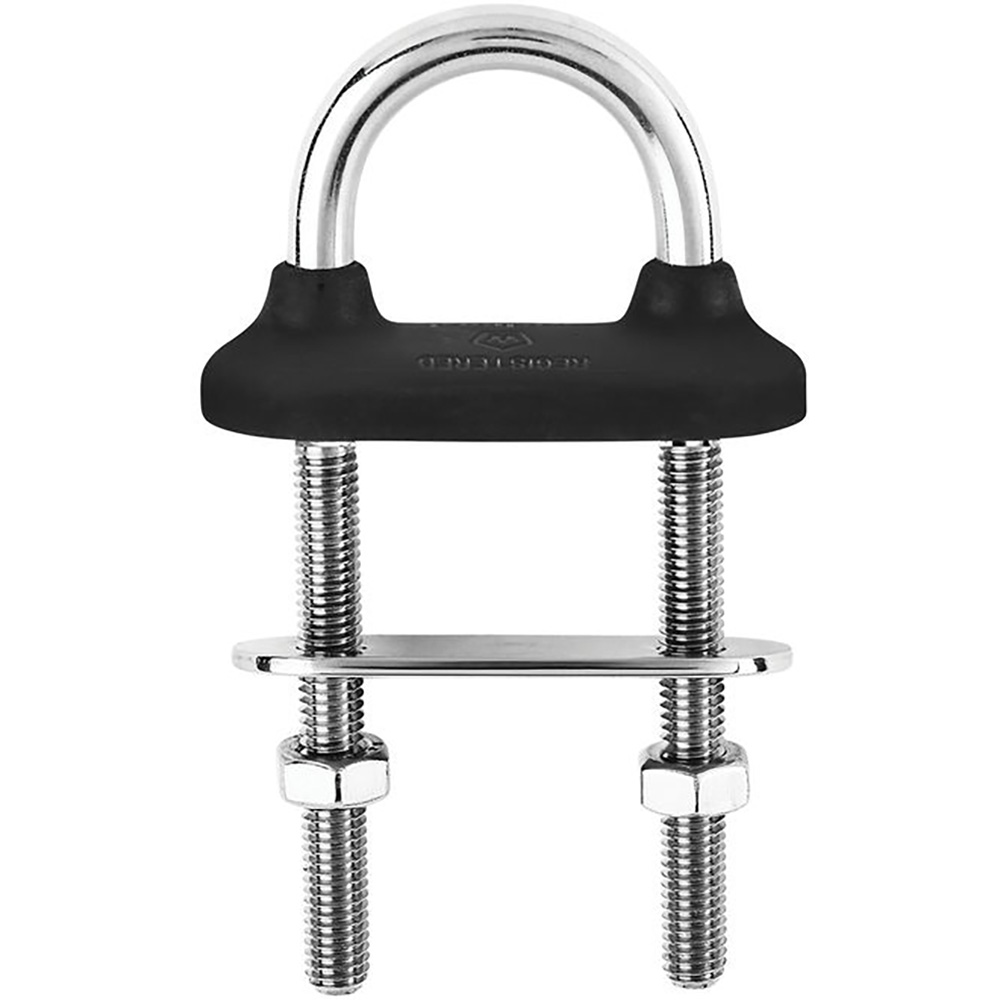

Wichard Black Watertight U-Bolt - 12mm Diameter - 15/32" - 130mm Length - 5-1/8"
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$188.28
You save:
$33.22
Black Watertight U-Bolt - 12mm Diameter - 15/32" - 130mm Length - 5-1/8"
Features:
- Fully drop-forged product with high-quality stainless steel
- Outstanding working and breaking loads
- Complete water-tightness thanks to the resistant rubber collar (black color)
- Easy installation (no need to use a waterproof sealant)
- Delivered with bolts and counter-plate
- Max tightening torque: 60 nm
Applications:
- Various fastening applications: shrouds, lifelines, blocks…
Specifications:
- Materials: 316L stainless steel grade
- Color: Black
- Working load: (lb) 14100 / (kg) 6400
- Breaking load: (lb) 22040 / (kg) 10000
- Weight: (lb) 0.827 / (g) 375
Dimensions:
- Length: (inch) 5 1/8" / (mm) 130
- A: (inch) 1 47/64" / (mm) 44
- B: (inch) 1 1/16" / (mm) 27
- C: (inch) 2 3/4" / (mm) 70
- D diameter: (inch) 15/32" / (mm) 12
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
