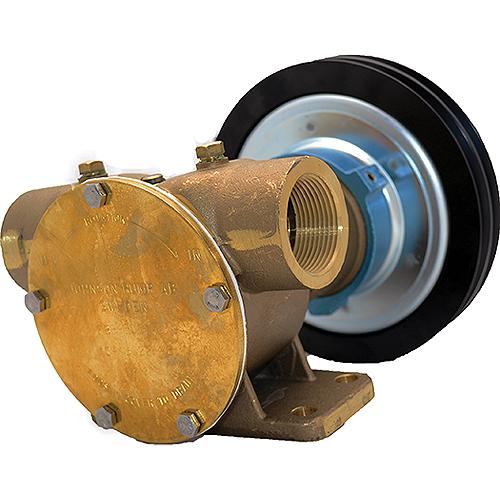

Johnson Pump F8B-5 1-1/2" Npt Electric Clutch Pump,12V 2Xb Pulley - 10-13022-88 - 189-101302288F1
Available @ ON, Warehouse BC, Warehouse This product is available for purchase online. For pricing and availability, click the “Ask a Question about this Product” button below to speak with our team. Let us know your shipping destination and required quantity, and we’ll have a personalized quote ready for you. |
$1,651.29
Suitable for bilge and washdown. With an electro-magnetic clutch you will have pumping power whenever needed, at a push of a button, without being at the pump. Wearing parts are easily replaceable and service kits are available for all standard models. Has a bronze body and a connection for a vacuum switch and stainless steel shaft mounted with permanently lubricated double ball bearings. Mechanical seal. Full or reduced CAM. Pulley: 2xA or 1xB-groove. 50017 replacement for Jabsco 6400-0004. GPM shown at 1750 rpm. Pumps can operate with either a 12V or 24V clutch.
| Part #: | 189-101302288 |
| Manufacturer: | JOHNSON PUMP/MAYFAIR |
| Manufacturer Part #: | 10-13022-88 |
| UPC: | 729321913140 |
| Order In Multiples Of: | 1 |
| Volts | 12 |
| Ports | 1-1/2" NPT |
| Impeller | 09-819B-00 |
| GPM | 63.7 |
| Description | 05-32-3 Clutch |
| Model | F8B-8007 |
| Gallons Per Minute | 63.7 |
| Mount Type | F8B-8007 |
| Port Type | 1-1/2" NPT |
| Voltage | 12 |
Variations
| 189-101302284 | Johnson Pump F8B-5 1-1/4" NPT Electric Clutch Pump ,12 V,2xA Pulley |
| 189-101302290 | Johnson Pump F8B-50017 1-1/2 Clutch Pump 12V 2XB Pulley |
| 189-101302295 | Johnson Pump F8B-5 1-1/4" NPT, Bare Shaft (U.S. Version) |
| 189-1013022951 | Johnson Pump F8B-5 1-1/4 NPT Electric Clutch Pump ,12 V,2xA Pulley |
| 189-1013022953 | Johnson Pump F8B-5 1-1/4 NPT Electric Clutch Pump ,12 V,2xB Pulley |
| 189-101302296 | Johnson Pump F8B-5 1-1/2" NPT Clutch Pump, Bare Shaft (U.S. Version) |
| 189-1013022961 | Johnson Pump F8B-5 1-1/2 NPT Electric Clutch Pump,12V 2xA Pulley |
| 189-1013022963 | Johnson Pump F8B-5 1-1/2 NPT Electric Clutch Pump,12V 2xB Pulley |
| 189-1013022981 | Johnson Pump F8B-5 1-1/2 NPT Electric Clutch Pump,12V 2xA Pulley |
| 189-1013022983 | Johnson Pump F8B-50017 1-1/2 Clutch Pump 12V 2XB Pulley |
| 189-102457789 | F7B-50017 CLUTCH PUMP REPLACES P/N 189-1024577983 |
| 189-102457798 | F7B-50017 PUMP NO CLUTCH |
| 189-1024577981 | Johnson Heavy Duty Clutch Pump |
| 189-1024577983 | F7B-50017 CLUTCH PUMP |
