Sea-Dog 147126 Captive Pin Stainless Steel D-Shackle, 1/4" - 147126-1 - 354-1471261F1
Available @ ON, Warehouse BC, Warehouse This product is available for purchase online. For pricing and availability, click the “Ask a Question about this Product” button below to speak with our team. Let us know your shipping destination and required quantity, and we’ll have a personalized quote ready for you. |
$8.59

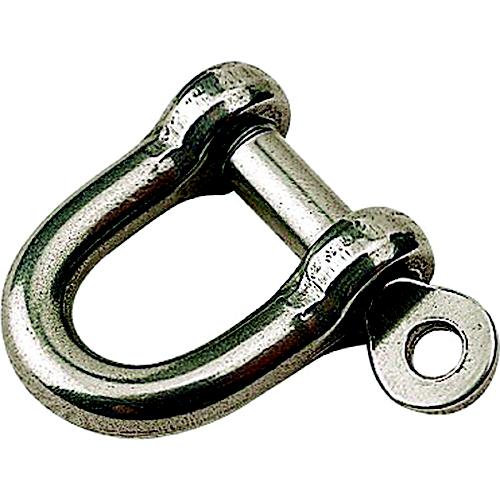

Designed for rigging applications with bi-directional loads the D style shackle has straight sides with a U-shape rounded bottom. The U-shaped end can handle heavy loads, loads on the straight sides, however, may cause bending. Constructed of forged 316 stainless these shackles feature a captive pin closure. When open the pin completely clears the opening of the shackle and is recessed into a secured flush position. The pin remains captive and will not fall out, no risk of loss due to vibration. With other shackles, the pin is not flush until you partially unscrew it. Ideal for rigging applications where single-handed operation is required.
| Part #: | 354-1471261 |
| Manufacturer: | SEA-DOG LINE |
| Manufacturer Part #: | 147126-1 |
| UPC: | 035514147750 |
| Order In Multiples Of: | 1 |

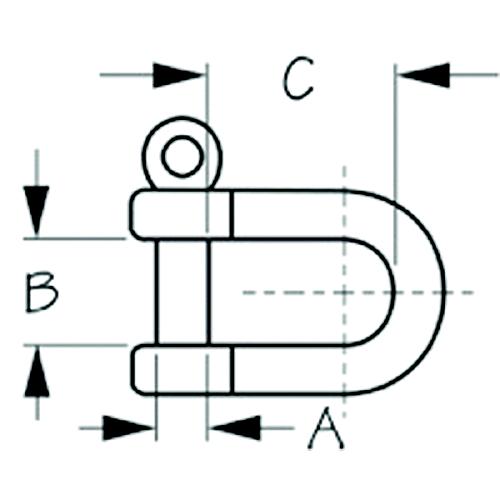

| A | 1/4" |
| B | 1/2" |
| C | 7/8" |
| Maximum Load | 3300 lbs. |
Variations
| 354-146742 | Sea-Dog 146742 Eye Grab Hook, Stainless Steel, 5-3/8" |
| 354-147123 | Sea-Dog 147123 Captive Pin Stainless Steel D-Shackle, 5/32" |
| 354-1471231 | Sea-Dog 147123 Captive Pin Stainless Steel D-Shackle, 5/32" |
| 354-147124 | Sea-Dog 147124 Captive Pin Stainless Steel D-Shackle, 3/16" |
| 354-147126 | Sea-Dog 147126 Captive Pin Stainless Steel D-Shackle, 1/4" |
| 354-147128 | Sea-Dog 147128 Captive Pin Stainless Steel D-Shackle, 5/16" |
| 354-147130 | Sea-Dog 147130 Captive Pin Stainless Steel D-Shackle, 3/8" |
| 354-1471301 | Sea-Dog 147130 Captive Pin Stainless Steel D-Shackle, 3/8" |
| 354-147132 | Sea-Dog 147132 Captive Pin Stainless Steel D-Shackle, 1/2" |
