Sea-Dog 4266861 20 Gang Screw Type Comination Buss Bar - 426686-1 - 354-4266861F1
Available @ ON, Warehouse BC, Warehouse This product is available for purchase online. For pricing and availability, click the “Ask a Question about this Product” button below to speak with our team. Let us know your shipping destination and required quantity, and we’ll have a personalized quote ready for you. |
$40.19

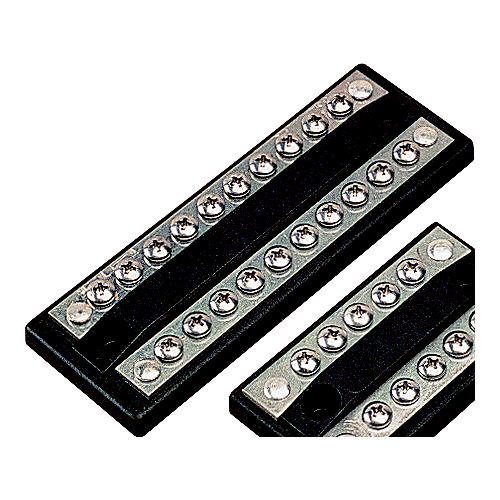

This Combination Buss Bar features separate buss strips that allow both negative and positive connections on the same block. Constructed of tin plated brass and ABS. Designed for use with tinned copper marine wire which shares the same expansion rate to prevent loosening wires and reducing electrolytic corrosion caused by pairing two disparate metals. Maximum: 48VDC, 100A. #8-32 terminals. Installs with two #10 RH fasteners (not included).
| Part #: | 354-4266861 |
| Manufacturer: | SEA-DOG LINE |
| Manufacturer Part #: | 426686-1 |
| Order In Multiples Of: | 1 |

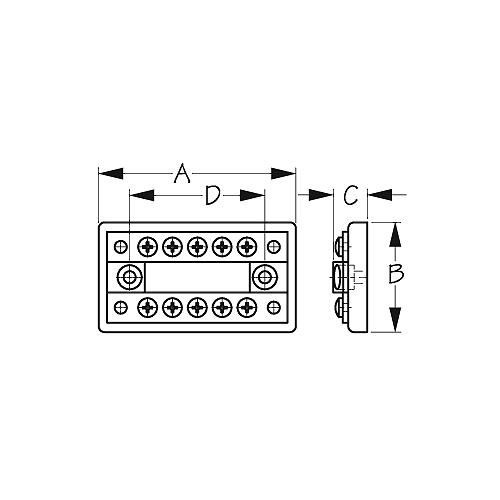

| D | 4-5/16" |
| Gang | 20 x #8-32 |
| C | 9/16" |
| B | 1-13/16" |
| A | 5-5/16" |
| Number of Gangs | 20 x #8-32 |
Variations
| 354-4266851 | Sea-Dog 4266851 10 Gang Screw Type Comination Buss Bar |
| 354-426686 | Sea-Dog 426686 20 Gang Screw Type Comination Buss Bar, Bulkl |
