Sea-Dog Galvanized Shackle-Load Rated , A:7/8" , B:1-1/4, C:2", D:2-3/4", Max Load: 4-3/4 Ton - 147619 - 354-147619F1
|
Express
ON, Warehouse
"Express" items are automated and typically shipped out next available business day and delivered within 4 day. In Stock
|
$32.89
With their rounded shape bow shackles are designed to handle many different types of load from any direction. Constructed of hot dip galvanized drop forged steel these shackles feature a screw pin closure and are ideal for joining anchors to mooring chain. These Screw Pin Anchor Shackles are forged to comply with Federal Spec. RR-C-271b and are load rated.
| Part #: | 354-147619 |
| Manufacturer: | SEA-DOG LINE |
| Manufacturer Part #: | 147619 |
| UPC: | 035514148450 |
| Order In Multiples Of: | 1 |

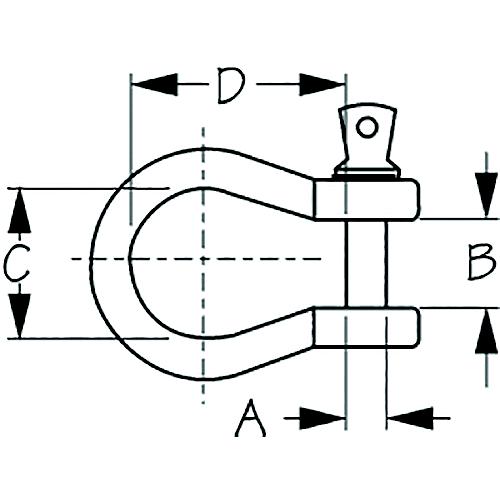

| A | 7/8" |
| B | 1-1/4" |
| C | 2" |
| D | 2-3/4" |
| Maximum Load | 4-3/4 ton |
Variations
| 354-147410 | Sea-Dog 147410 Twisted D-Shackle, 3/8" |
| 354-147606 | Sea-Dog 147606 Galvanized Shackle-Load Rated, , A:5/16" , B:9/16", C:13/16", D:1-1/8", Max Load: 1/2" Ton |
| 354-147608 | Sea-Dog 147608 Galvanized Shackle-Load Rated, A: 3/8", B:1/2", C:13/16", D:1-3/16", Max Load: 3/4 Ton |
| 354-147610 | Sea-Dog 147610 Galvanized Shackle-Load Rated, , A:7/16", B:11/16", C:1", D:1-7/16", Max Load: 1 Ton |
| 354-147611 | Sea-Dog 147611 Galvanized Shackle-Load Rated, , A:1/2" , B:11/16", C: 1-1/8", D: 1-11/16", Max Load: 1-1/2 Ton |
| 354-147612 | Sea-Dog 147612 Galvanized Shackle-Load Rated, A: 5/8", B:13/16", C:1-1/4", D: 1-13/16" Max Load: 2 Ton |
| 354-147616 | Galvanized Shackle-Load Rated, 5/8" |
