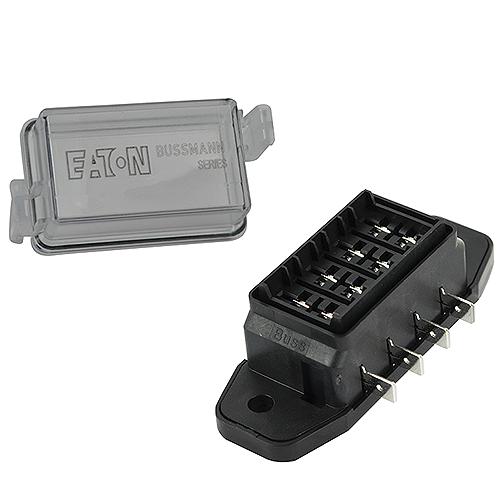

Seachoice 11276 Splash Proof Atc Fuse Block, 4 Terminal - Sc11276 - 50-11276F1
|
Express
ON, Warehouse
"Express" items are automated and typically shipped out next available business day and delivered within 4 day. In Stock
|
$36.07
A convenient means of adding fused circuits to power accessories or auxiliary loads. Each pole has its own 1/4" male quick-connect isolated terminals (power is not provided by a common bus). These blocks feature a back plate for additional safety and electrical isolation. The clear cover has an O-ring seal to help keep out contaminants and makes it easy to inspect fuses (fuses not included). 15A per circuit. Operating environment: -40°C to 105°C (-40°F to 221°F), 95% RH non-condensing. Uses two 5.5mm mounting holes for M5 (#10) screws.
| Part #: | 50-11276 |
| Manufacturer: | SEACHOICE |
| Manufacturer Part #: | SC11276 |
| UPC: | 719249112763 |
| Order In Multiples Of: | 1 |
| Terminals | 4 |
| Amps | 30 |
| Case | 5 |
| Size | 3-5/16" L x 1-3/16" W |
| Voltage | 32V |
Variations
| 50-11277 | Seachoice 11277 Splash Proof ATC Fuse Block, 8 Terminal |
