Wichard HR D Shackle - 16mm Diameter - 5/8"
Back Order
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
On Back Order
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
$524.25
You save:
$92.51

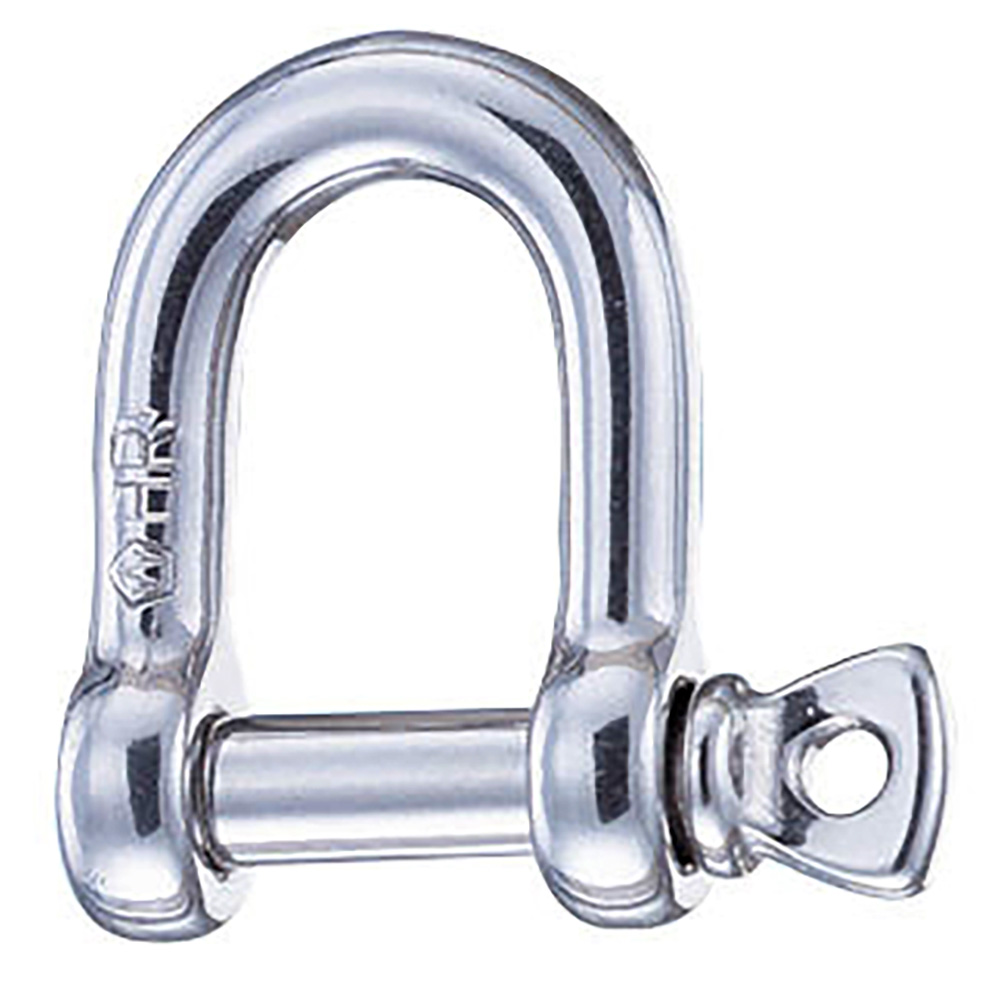

HR D Shackle - 16mm Diameter - 5/8"
Features:
- Forged D shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Applications requesting high loads
- Standard applications of the shackle
- Attachment applications: blocks, head …
- Do not use it for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 14990 / (kg) 6800
- WLL: (lb) 8370 / (kg) 3800
- Breaking load: (lb) 41880 / (kg) 19000
- Weight: (lb) 1.023 / (g) 464

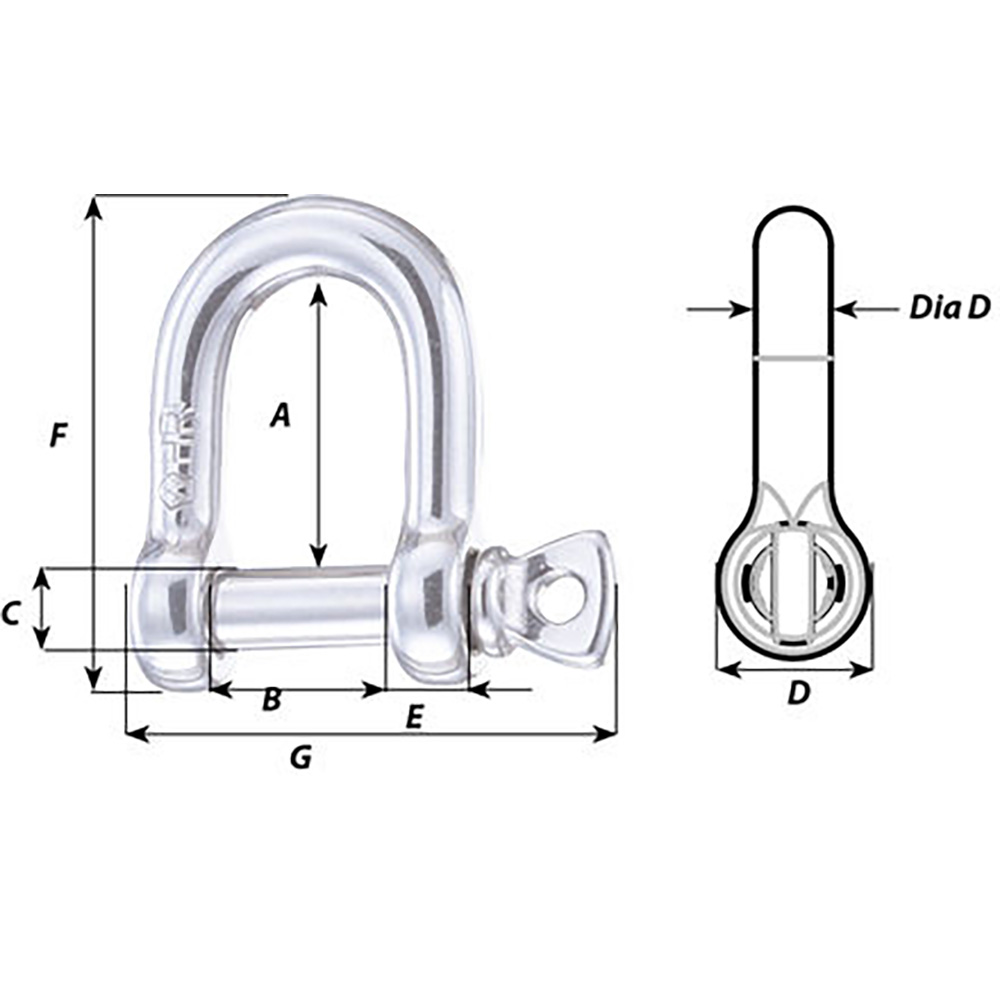

Dimensions:
- A: (inch) 2 13/64" / (mm) 56
- B: (inch) 1 17/64" / (mm) 32
- D diameter: (inch) 5/8" / (mm) 16
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
Product Specifications
| Dimensions | 4" L × 4" W × 1" H |
|---|---|
| Shipping Weight | 1 lb |
Documentation
| Quick Guide | Download PDF |
|---|
