Sea-Dog 2019161 Semi-Concealed Stainless Hinges, Pr. - 201916-1 - 354-2019161F1
Available @ ON, Warehouse BC, Warehouse This product is available for purchase online. For pricing and availability, click the “Ask a Question about this Product” button below to speak with our team. Let us know your shipping destination and required quantity, and we’ll have a personalized quote ready for you. |
$18.69
Semi-concealed hinges are designed to be mounted on the back surface of a door having a corresponding 3/8" offset mortised into the edge of the door. All hinges require #6 RH screws.
| Part #: | 354-2019161 |
| Manufacturer: | SEA-DOG LINE |
| Manufacturer Part #: | 201916-1 |
| UPC: | 035514202466 |
| Order In Multiples Of: | 1 |

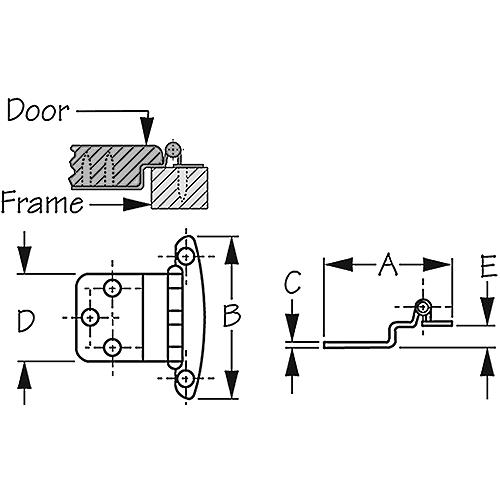

| A | 2-3/16" |
| B | 2-3/4" |
| C | 1/16" |
| D | 1-1/2" |
| E | 3/8" |
| Pack | 2 |
| F | 9/16" |
| Material | Stainless |
Variations

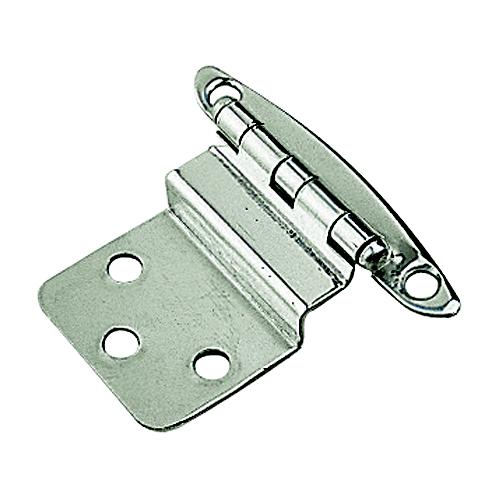

| 354-2019141 | Sea-Dog 2019141 Semi-Concealed Stainless Hinges, Pr. |
| 354-201915 | Sea-Dog 201915 Semi-Concealed Brass Hinge |
| 354-2019151 | Sea-Dog 2019151 Semi-Concealed Brass Hinges, Pr. |
