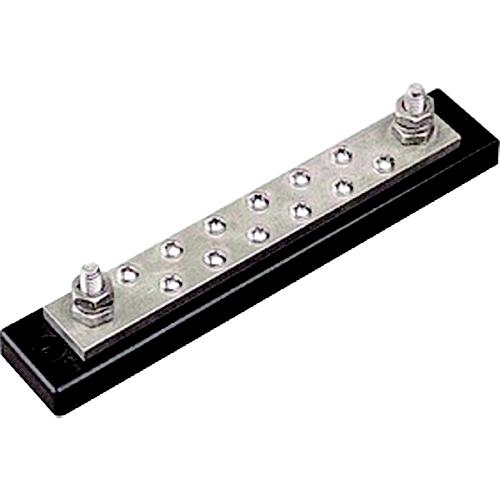

Sea-Dog 4267221 Buss Bar 10 Screw Terminal Block, 6" - 426722-1 - 354-4267221F1
|
Express
ON, Warehouse
"Express" items are automated and typically shipped out next available business day and delivered within 4 day. In Stock
|
$34.97
Buss Bar Screw-Temrinal Blocks are each equipped with a two 1/4" studs for main wire connection. Maximum: 48VDC. Installs with two #10 RH fasteners (not included). 426722 has certification by ISO, ABYC, SAE, USCG, and CE low voltage directive standards.
| Part #: | 354-4267221 |
| Manufacturer: | SEA-DOG LINE |
| Manufacturer Part #: | 426722-1 |
| UPC: | 035514427500 |
| Order In Multiples Of: | 1 |
| Terminals | 10 x #8-32 |

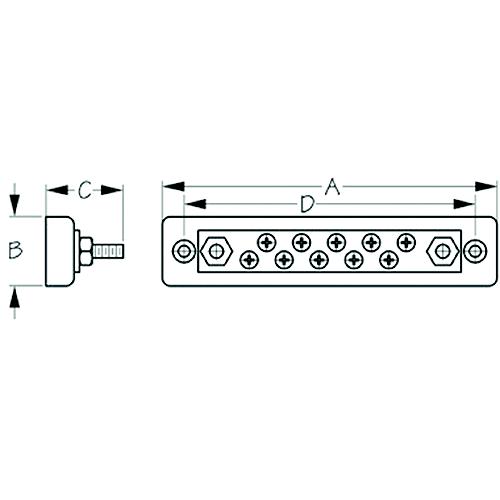

| D | 5-3/16" |
| Amps | 150 |
| Fastener | #10 RH |
| C | 1-3/8" |
| B | 1-1/4" |
| A | 6" |
| Stud | 1/4" |
| Stud Size | 1/4" |
Variations
| 354-4267241 | Sea-Dog 4267241 Buss Bar 20 Screw Terminal Block, 9-1/8" |
| 354-426733 | Sea-Dog 426733 Buss Bar 12 Screw Terminal Block, 7-15/16" |
| 354-4267331 | Sea-Dog 426733 Buss Bar 12 Screw Terminal Block, 7-15/16" |
