Sea-Dog Line 4267101 Screw Terminal Buss Bar, 5 Terminals - 426710-1 - 354-4267101F1
Available @ ON, Warehouse BC, Warehouse This product is available for purchase online. For pricing and availability, click the “Ask a Question about this Product” button below to speak with our team. Let us know your shipping destination and required quantity, and we’ll have a personalized quote ready for you. |
$30.49

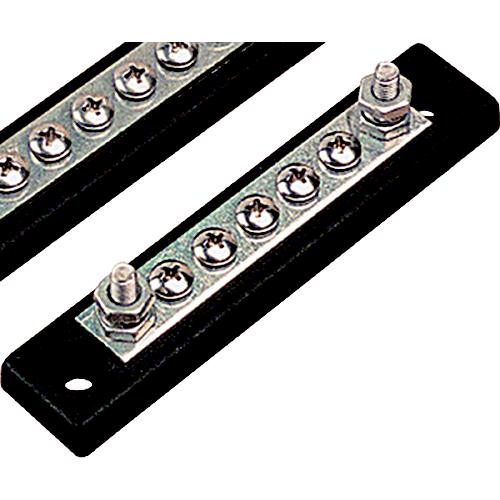

This Buss Bar Screw-Terminal Block is equipped with two each #10-24 studs for main wire connection. Constructed of tin plated brass and ABS. Designed for use with tinned copper marine wire which shares the same expansion rate to prevent loosening wires and reducing electrolytic corrosion caused by pairing two disparate metals. Maximum: 48VDC, 100 amps. #8-32 terminals. Installs with two #10 RH fasteners (not included).
| Part #: | 354-4267101 |
| Manufacturer: | SEA-DOG LINE |
| Manufacturer Part #: | 426710-1 |
| UPC: | 035514427456 |
| Order In Multiples Of: | 1 |
| Terminals | 5 x #8-32 |

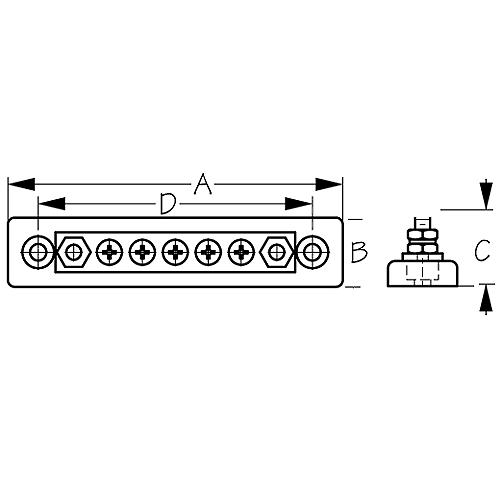

| D | 3-7/16" |
| C | 15/16" |
| B | 7/8" |
| A | 4-3/16" |
| Amps | 100 |
Variations
| 354-4267111 | Sea-Dog Line 4267111 Screw Terminal Buss Bar, 10 Terminals |
