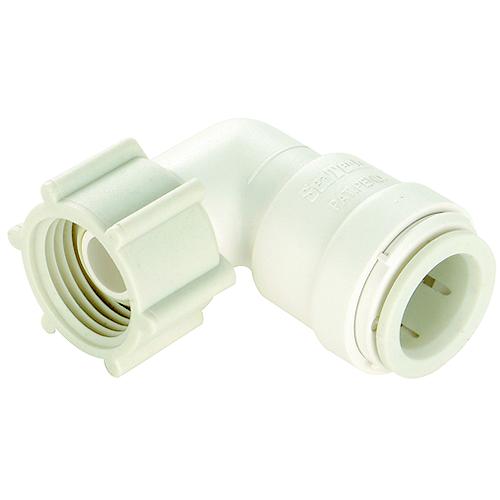

Seatech 35 Series Connector, 3/8" Swivel Elbow, Female - 013520-0808 - 694-0135200808F1
Available @ ON, Warehouse BC, Warehouse This product is available for purchase online. For pricing and availability, click the “Ask a Question about this Product” button below to speak with our team. Let us know your shipping destination and required quantity, and we’ll have a personalized quote ready for you. |
$47.99
Connectors utilize a swivel nut with NPS straight threads, and a cone seal. This allows the installer to thread onto NPT, NPS, BSP and most threads without tools or thread sealant. Simply thread on, and hand tighten for a zero leak seal. Small lengths of tubing can be eliminated by using stackable connectors. Manufactured from high performance thermal plastic, in an off-white color. Uses EPDM O-ring. Max. pressure: 100psi/6.8 bar. Max. temperature: 180°F/82°C.
| Part #: | 694-0135200808 |
| Manufacturer: | SEA TECH |
| Manufacturer Part #: | 013520-0808 |
| UPC: | 001352008089 |
| Order In Multiples Of: | 1 |
| Tubing | 3/8" CTS |
| Thread | 1/2" NPS |
| Description | Swivel Elbow, Female |
| Thread Size | 1/2" NPS |
Variations
| 694-0135131008 | SeaTech 35 Series Connector, 1/2" Hose Barb |
| 694-0135111008 | SeaTech 35 Series Connector, Stackable 1/2" Hose Barb Union |
| 694-01353310 | SeaTech 35 Series Connector, 1/2" Stackable Tee |
| 694-01352308 | SeaTech 35 Series Connector, 3/8" Union Tee |
| 694-01352310 | SeaTech 35 Series Connector, 1/2" Union Tee |
| 694-0135161008 | SeaTech 35 Series Connector, 1/2" - 3/8" Reducing Union |
| 694-01351510 | SeaTech 35 Series Connector, 1/2" Union Connector |
| 694-01354010 | SeaTech 35 Series Connector, 1/2" Union Check Valve |
| 694-01351708 | SeaTech 35 Series Connector, 3/8" Union Elbow |
| 694-01351710 | SeaTech 35 Series Connector, 1/2" Union Elbow |
| 694-01351810 | SeaTech 35 Series Connector, 1/2" Stackable Elbow |
| 694-0135191008 | SeaTech 35 Series Connector, 1/2" Elbow, Male |
| 694-0135201008 | SeaTech 35 Series Connector, 1/2" Swivel Elbow, Female |
| 694-0135101008 | SeaTech 35 Series Connector, 1/2" Swivel Connector, Female |
| 694-0135100808 | SeaTech 35 Series Connector, 3/8" Swivel Connector, Female |
| 694-0135011008 | SeaTech 35 Series Connector, 1/2" Connector, Male |
| 694-01353810 | SeaTech 35 Series Connector, 1/2" 3-Way Selector Valve |
| 694-01354110 | SeaTech 35 Series Connector, 1/2" 3-Way Bypass Valve |
| 694-01353910 | SeaTech 35 Series Connector, 1/2" Stop Valve |
| 694-0135431004 | SeaTech 35 Series Connector, Ice Maker Stem Valve |
| 694-01354510 | SeaTech 35 Series Connector, 1/2" End Stop |
| 694-01354710 | SeaTech 35 Series Connector, 1/2" Collet Clip |
| 694-01234915 | SeaTech 35 Series Connector, 1/2" Elbow Clip |
| 694-0123701557 | SeaTech 35 Series Connector, 1/2" Pipe Clip |
