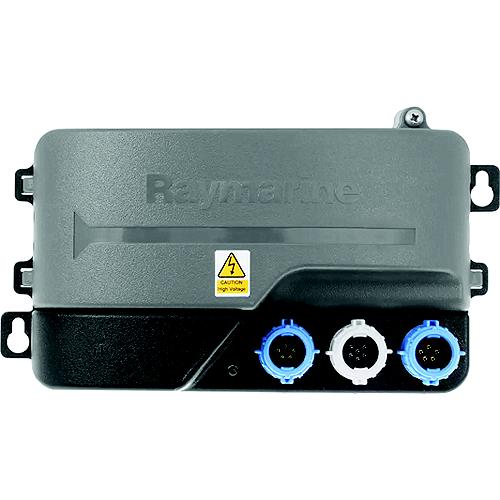

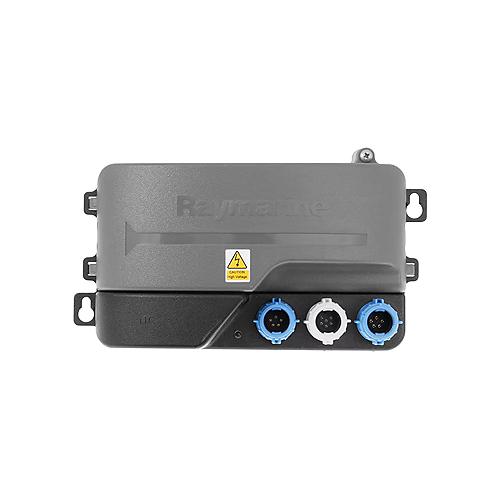

Raymarine E70010 Itc-5 Transducer Converter, Power Consumption: Typical: 1.5 W, 12 V Dc, < 150 Ma Peak Operating Current - E70010 - 152-E70010F1
|
Express
ON, Warehouse
"Express" items are automated and typically shipped out next available business day and delivered within 4 day. In Stock
|
$536.59
converts analogue transducer signals used in i70, ST70+ and ST70 instrument systems to SeaTalkNG. Transducers for Speed/Temperature, Depth, Wind and Rudder Angle can be connected to the one iTC-5 unit, eliminating the need for multiple ST70 pods. Extended SeaTalkNG systems can support multiple iTC-5 unitsSeaTalkNG connections at the base of the unit simply connect the iTC-5 unit into the SeaTalkNG backboneThe ST40/i40/i50/i60 and ST60+ displays cannot calibrate the iTC-5. Only the i70 has full transducer calibration. The ST70/ST70+ can calibrate the Depth, Wind and Speed/Temp transducers (not Rudder or Compass)If you don't have an ST70/ST70+ or i70 in your system, then the ST40/i40/i50/i60/ST60+ displays must be interfaced directly to the relevant analogue transducersConverts analogue trandsucer signals used in i70, ST70+ and ST70 instruments
| Part #: | 152-E70010 |
| Manufacturer: | RAYMARINE |
| Manufacturer Part #: | E70010 |
| UPC: | 723193701164 |
| Order In Multiples Of: | 1 |
| Description | iTC-5 Instrument Transducer Converter |
| Current | < 150 mA peak operating current |
| Power Consumption | Typical: 1.5 W |
| Voltage | 12 V |
