On/Off Switch - Mp39520 - 11-Mp39520F1
|
Express
ON, Warehouse
"Express" items are automated and typically shipped out next available business day and delivered within 4 day. In Stock
|
$35.99

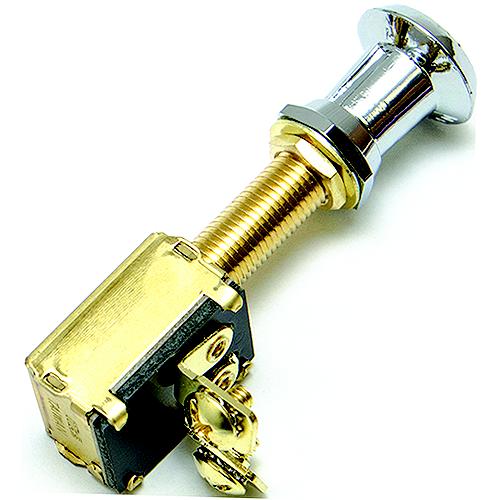

Sierra push pull switches feature solid brass construction with stainless steel springs. 3/8" Diameter mounting stem fits panels up to 1" thick. 15 amp @12VDC, 25A @24VDC.MP39400: used to control the same circuit from two locations.MP39600: energizes two separate circuits in the ON position. MP39640: first pull energizes circuit 1, second pull energizes circuit 2.MP39570, MP39580, & MP39590: first pull energizes circuit 1, second pull energizes circuits 1&2.MP39610 & MP39620: first pull energizes circuit 1, second pull energizes circuits 2&3.
| Part #: | 11-MP39520 |
| Manufacturer: | SIERRA |
| Manufacturer Part #: | MP39520 |
| UPC: | 023121395206 |
| Order In Multiples Of: | 1 |
| Description | Off/On |
| Type | SPST |
| Terminals | 2 Screw |
| Knob | Chr/Plastic |
| Knob Finish | Chr/Plastic |
Variations
| 11-MP39510 | On/Off Push/Pull S/S11-39510 |
| 11-MP39530 | Switch 2 Position Off-On |
| 11-MP39540 | Push-Pull Swch 2-Pos. Chrome |
| 11-MP39570 | Sierra On/Off/On SPDT 3 Screw Terminal Heavy Duty Push Pull Switch |
| 11-MP39580 | Sierra On/Off/On SPDT 3 Screw Terminal Heavy Duty Push Pull Switch |
| 11-MP39590 | Sierra MP39590 On/Off/On SPDT 4 Blade Terminal Heavy Duty Push Pull Switch | Chrome & Plastic Knob |
| 11-MP39600 | Push-Pull Switch |
| 11-MP39610 | Sierra Off/On/On SPDT 4 Screw Terminal Heavy Duty Push Pull Switch |
| 11-MP39620 | Sierra Off/On/On SPDT 4 Screw Terminal Heavy Duty Push Pull Switch |
| 11-MP39640 | Sierra MP39640 On/Off/On SPDT 3 Screw Terminal Heavy Duty Push Pull Switch - Chrome & Brass Knob |
