Seadog Butt Hinge With Bearings | Commercial Pattern | Investment Cast 316 Stainless | 1/4" Fastener - 205246 - 354-205246F1
|
Express
ON, Warehouse
"Express" items are automated and typically shipped out next available business day and delivered within 4 day. In Stock
|
$119.39

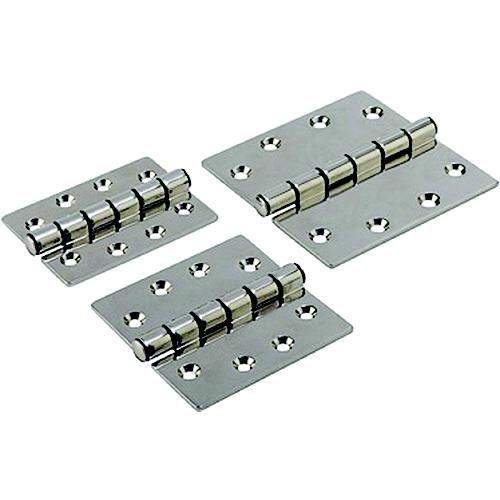

Constructed of investment cast 316 stainless steel these Butt Hinges are designed for applications where both extra strength and corrosion resistance are required. The integral nylon bearings promote rattle-free, silent movement and give the hinge a smoother action. The bearings also disburse the weight of the door compensating for heavier doors and increased use. Commercial ANSI templated screw hole pattern. Installs with eight 1/4" FH fasteners (not included).
| Part #: | 354-205246 |
| Manufacturer: | SEA-DOG LINE |
| Manufacturer Part #: | 205246 |
| UPC: | 035514205726 |
| Order In Multiples Of: | 1 |

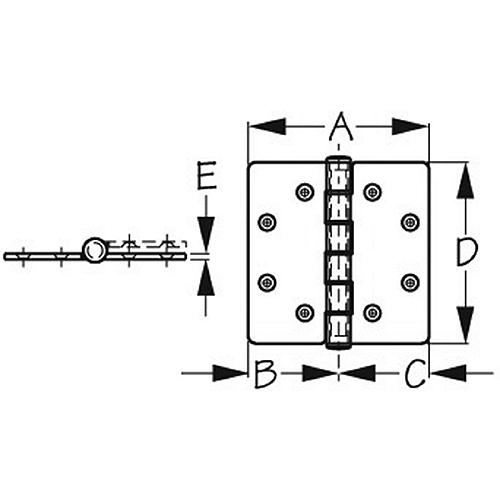

| D | 5" |
| E | 1/8" |
| Fastener | 1/4" FH |
| C | 2-1/2" |
| B | 2-1/2" |
| A | 5" |
| Fastener Size | 1/4" FH |
Variations
| 354-205243 | SeaDog Butt Hinge with Bearings | Commercial Pattern | Investment Cast 316 Stainless | 1/4" Fastener |
| 354-205244 | SeaDog Butt Hinge with Bearings | Commercial Pattern | Investment Cast 316 Stainless | 1/4" Fastener |
| 354-205242 | SeaDog Butt Hinge with Bearings | Commercial Pattern | Investment Cast 316 Stainless | 1/4" Fastener |
