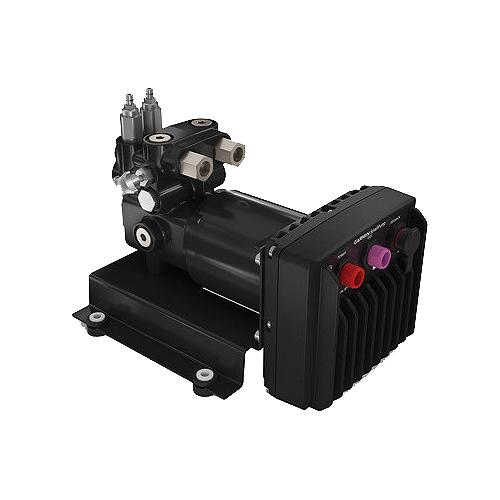

Garmin 0100070562 Smartpump V2 Autopilot Pump, 12/24V - 010-00705-62 - 322-0100070562F1

Put an end to guessing which pump size will work with your particular boat. One SmartPump V2 works for most hydraulically steered boats and applications. For optimum control and confidence, you know you have the right pump for your boat. Plus, you get complete control in a smaller size with better thermal performance, higher reliability and lower power consumption. It also includes color-coded connectors to make it very easy to install. Dimensions (H x W x D): 6.6" x 7.5" x 10.4" (167.6 x 190.5 x 264.16 mm)Weight: 16.5 lbs (7.5 kg)Temperature range: From 5°F to 131°F (from -15°C to 55°C)Material: Electronics Control Unit (ECU) - fully gasketed, aluminum alloy; bracket - carbon steel; manifold - aluminum alloy; motor - aluminum alloyPower cable length: 9 ft (2.7 m)Power input: 10-30 VdcFuse: 40 A, blade-typeMain power usage: standby - less than 1 A; engaged - 5-10 A; peak - 34 AFlow rate: Configurable from 0 to 2.4 L per minuteCompatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in
