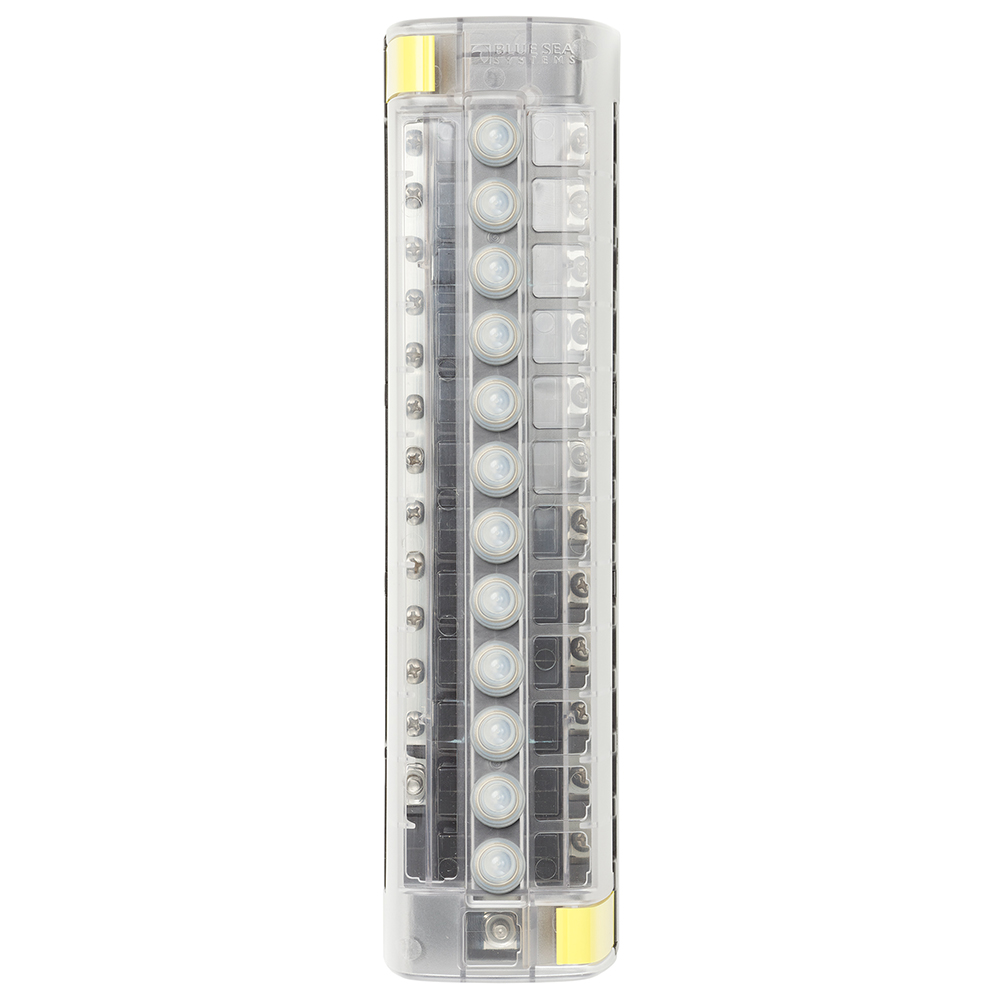

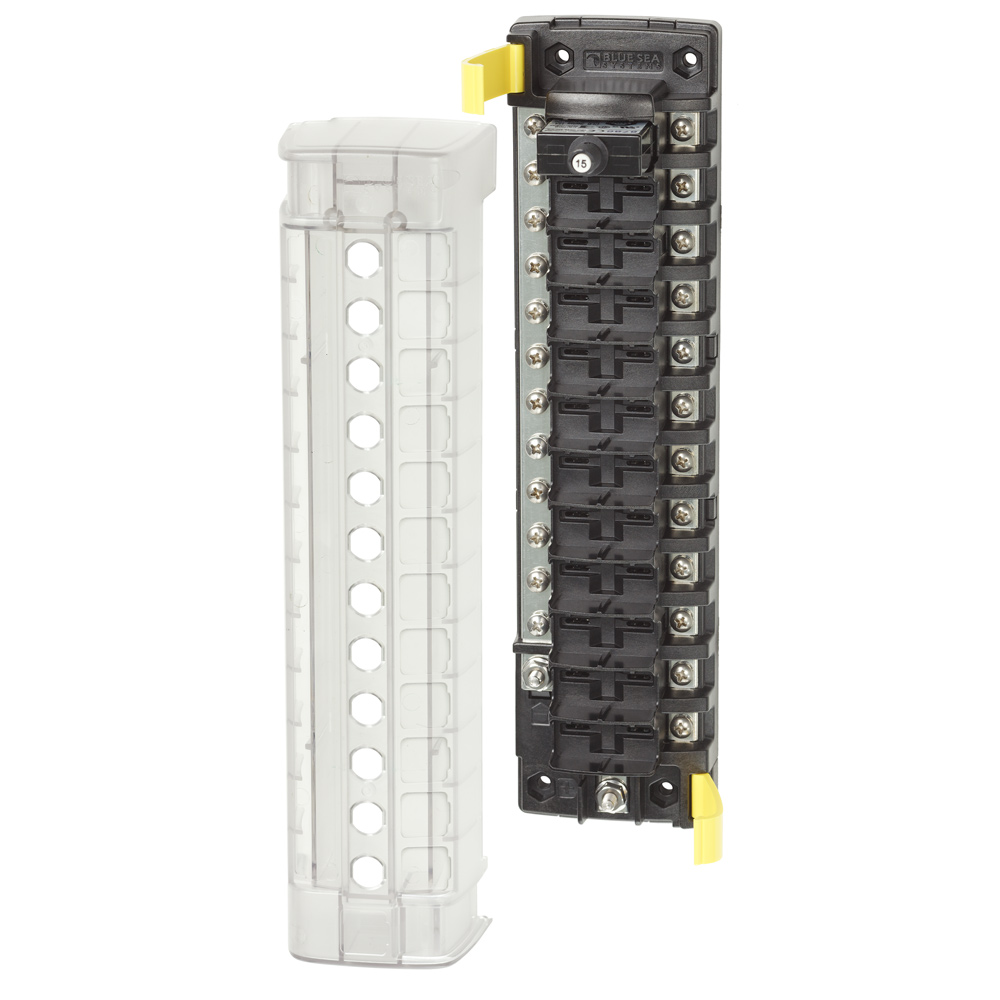

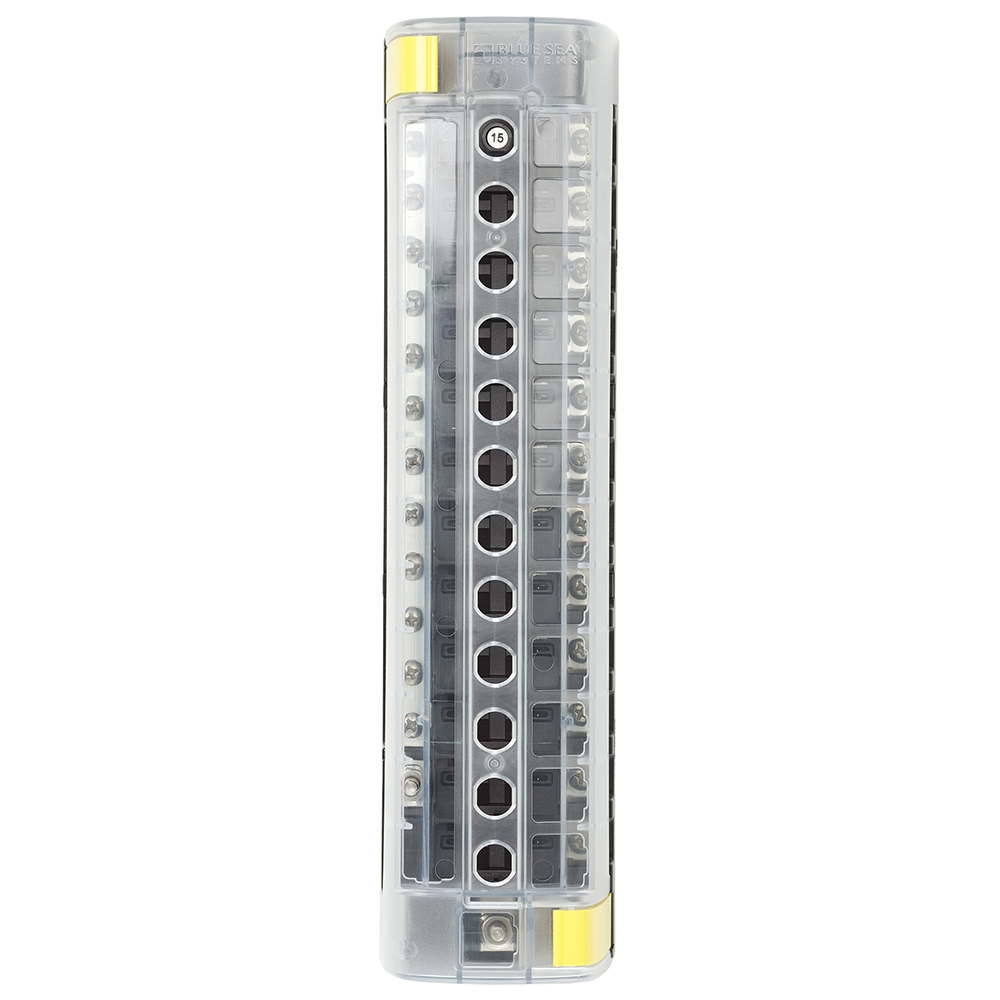

Blue Sea 5054 ST CLB Circuit Breaker Block - 12 Position w/Negative Bus

Name: Blue Sea 5054 ST CLB Circuit Breaker Block - 12 Position w/Negative Bus
Brand: Blue Sea Systems
SKU: 51812
Price: 249.33 CAD
Availability: InStock

SKU 51812 MPN 5054 UPC 632085050542 MFR Blue Sea Systems

Express

Toronto, ON Vancouver, BC NJ, Warehouse FL, Warehouse

"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.

In Stock 11 available

$249.33

Canadian Dollars

Ask a question about this product

Back to: Circuit Breakers

ST CLB Circuit Breaker Block - 12 Position w/Negative Bus

Features

Quick connect clips allow circuit breakers to snap easily into place
Tin-plated copper busses and screw terminals
Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
Easy to open clip on cover
Breakouts allow wire access in two directions
Accepts ring terminals
Optional push button waterproof boots or dress nuts can be installed over cover

Specifications:
Circuits: 12
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 10.13"(257.3 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 1.50lb (0.68 kg)
