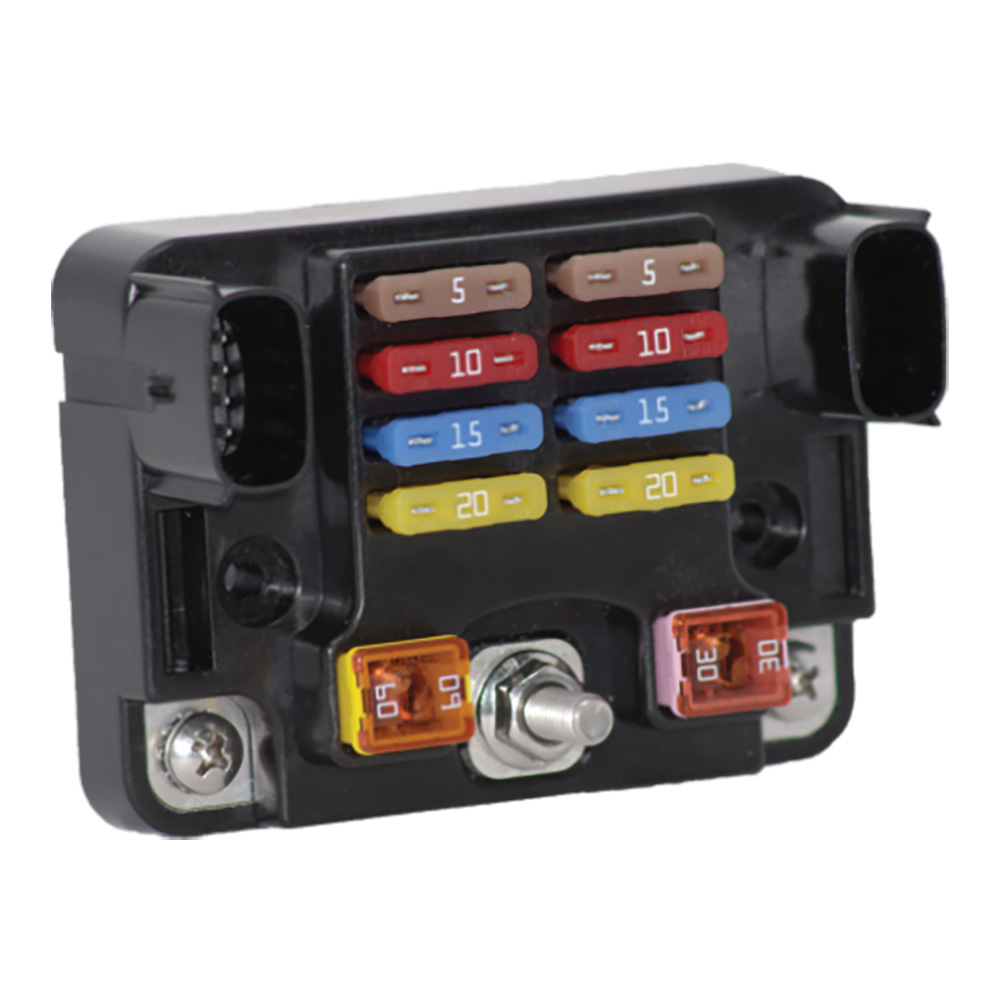

Egis 8 + 2 Fuse Block
Express
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.
In Stock
11 available
$78.64
8 + 2 Fuse Block
Applications:
- Compact Solution Combines Low Amp and High Amp Fuse Protection in One Product.
- Reduce Install Space and Total Installed Time/Cost, Two MX-150 Connectors for Low-Amp Outputs
- Two (2) High-Amp (20-50A) Outputs Support All Necessary Circuit Protection Needs in One Product
Features:
- Two (2) High-Amp (20-50A) Outputs Support All Necessary Circuit Protection Needs in One Product
- Protects Add-On Circuits from accidental short circuits to frame ground or battery negative, or from overload events.
- 4 Year Industry Leading Warranty
Specifications:
- Total Continuous Current (AMPS): 200 AMPS
- Max Current Per ATO Fuse (AMPS): 22 AMPS
- Voltage Range (V DC): 8-36V DC
- Max Current Per LP J Case Fuse (AMPS): 50 AMPS
- Max Current Per 4 Pos MX-150 (AMPS): 50 AMPS
- Max Wire Gauge, MX-150 Connector: 14 AWG
Documentation
| Quick Guide | Download PDF |
|---|
