Wichard U-Bolt Pad Eye - 4mm Diameter - 5/32"
Express
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.
In Stock
3 available
$23.91
You save:
$4.22

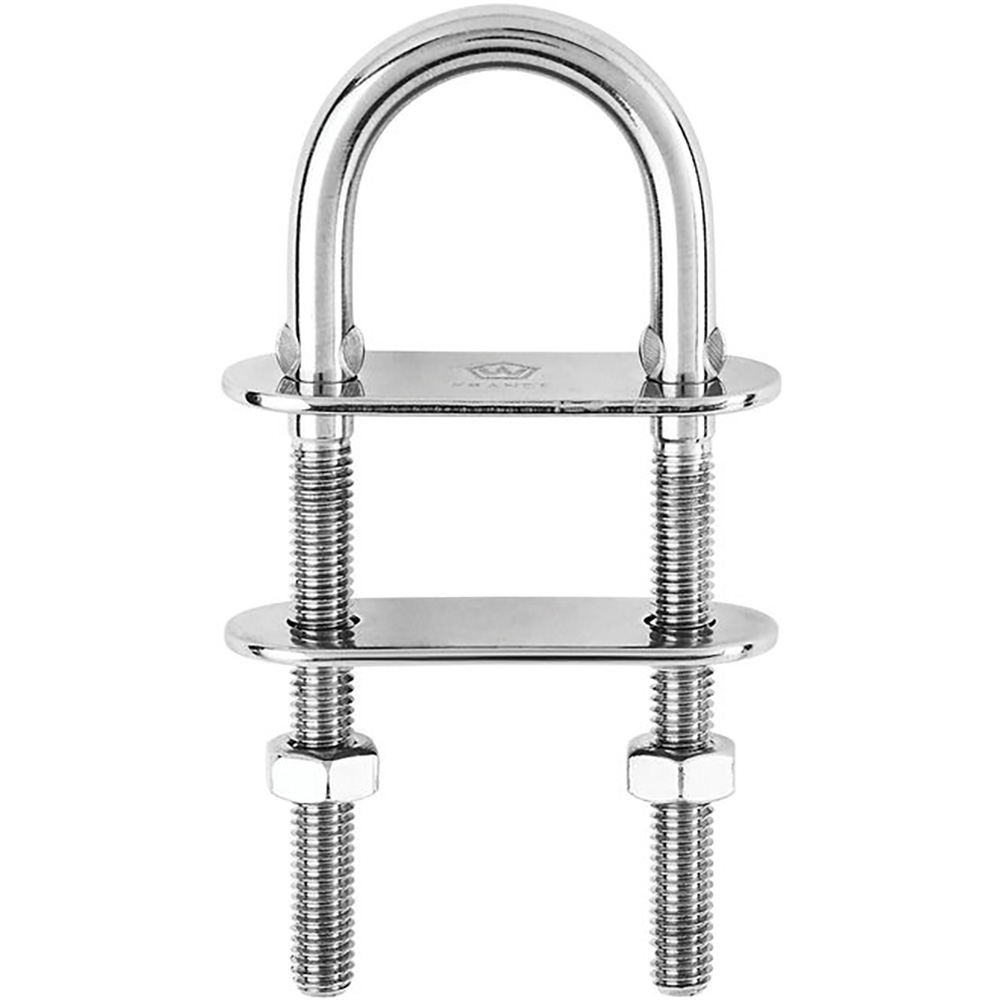

U-Bolt Pad Eye - 4mm Diameter - 5/32"
Features:
- Fully drop forged product with high-quality stainless steel
- Outstanding working and breaking loads
- For any kind of fastening applications (shrouds, lifelines, blocks...)
- Delivered with bolts and counter-plate
- Max tightening torque: 2.3 Nm
Applications:
- Various fastening applications: shrouds, lifelines, blocks…
Specifications:
- Materials: 316L stainless steel grade
- Working load: (lb) 1050 / (kg) 480
- Breaking load: (lb) 2200 / (kg) 1000
- Weight: (lb) 0.049 / (g) 22

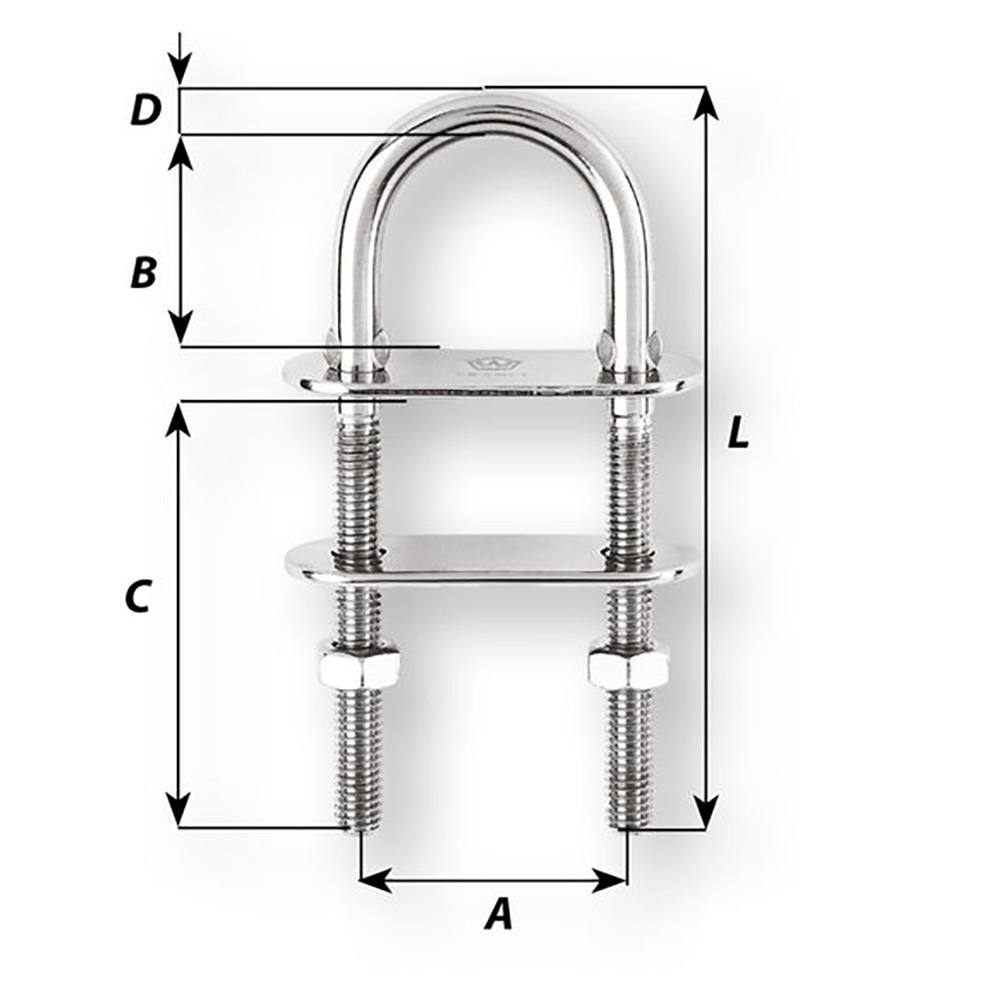

Dimensions:
- A: (inch) 15/16" / (mm) 24
- B: (inch) 53/64" / (mm) 21
- C: (inch) 1 1/16" / (mm) 27
- D diameter: (inch) 5/32" / (mm) 4
- Length: (inch) 1 31/32" / (mm) 50
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
