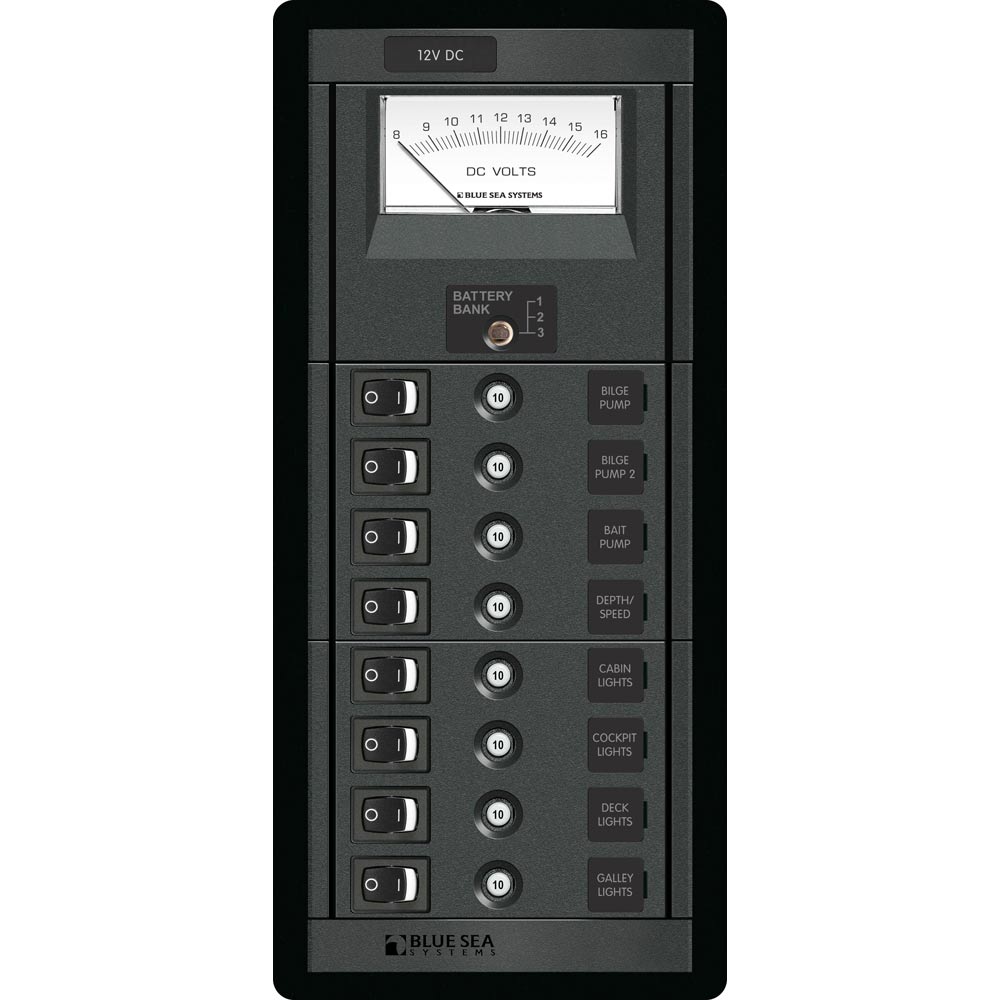

Blue Sea 1463 8 Position Switch CLB + Meter Vertical
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$884.03
8 Position Switch CLB + Meter Vertical
Features:
Specifications:
* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(8) - 7054 - Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps
(8) - 7480 - Rocker Switch SPST - ON-OFF
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 8003 - DC Analog Voltmeter - 8 to 16V DC (Meter)
Features:
- Available with voltmeters and ammeters
- Panels with meters include a toggle switch to monitor voltage on up to three battery banks
- Includes 4205-Square Format Label Set
Specifications:
- Positions: 8
- Nominal Voltage: 12V DC
- Maximum Amperage*: 80A per bus
- Height: 10.75" (273.05mm)
- Width: 4.88" (123.95mm)
- Depth: 3.50" (88.9mm)
- Weight: 3.66lb (1.66kg)
* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(8) - 7054 - Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps
(8) - 7480 - Rocker Switch SPST - ON-OFF
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 8003 - DC Analog Voltmeter - 8 to 16V DC (Meter)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Documentation
| Quick Guide | Download PDF |
|---|---|
| Owner's Manual | Download PDF |
