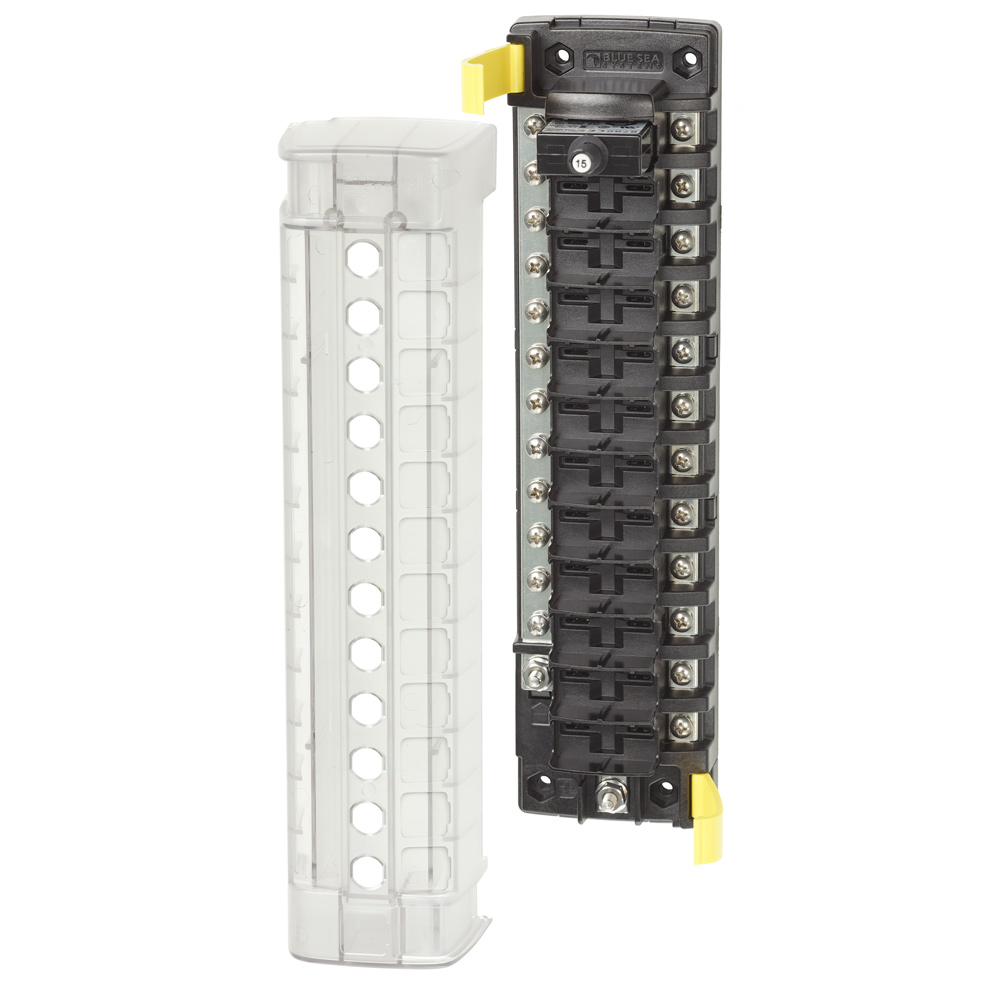

Blue Sea 5054 ST CLB Circuit Breaker Block - 12 Position w/Negative Bus

Name: Blue Sea 5054 ST CLB Circuit Breaker Block - 12 Position w/Negative Bus
Brand: Blue Sea Systems
SKU: 51812
Price: 252.97 CAD
Availability: InStock

LSN 51812 MPN 5054 UPC 632085050542 MFR Blue Sea Systems

Special Order

BC, Warehouse

"Special Order" items will take longer to process and ship then "Express" items.
Typically takes no more then 14 days for delivery.
For next day parts. Visit our express parts catalog Here.

In Stock

$252.97

Canadian Dollars

Ask a question about this product

Back to: Circuit Breakers

ST CLB Circuit Breaker Block - 12 Position w/Negative Bus

Features

Quick connect clips allow circuit breakers to snap easily into place
Tin-plated copper busses and screw terminals
Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
Easy to open clip on cover
Breakouts allow wire access in two directions
Accepts ring terminals
Optional push button waterproof boots or dress nuts can be installed over cover

Specifications:
Circuits: 12
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 10.13"(257.3 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 1.50lb (0.68 kg)
