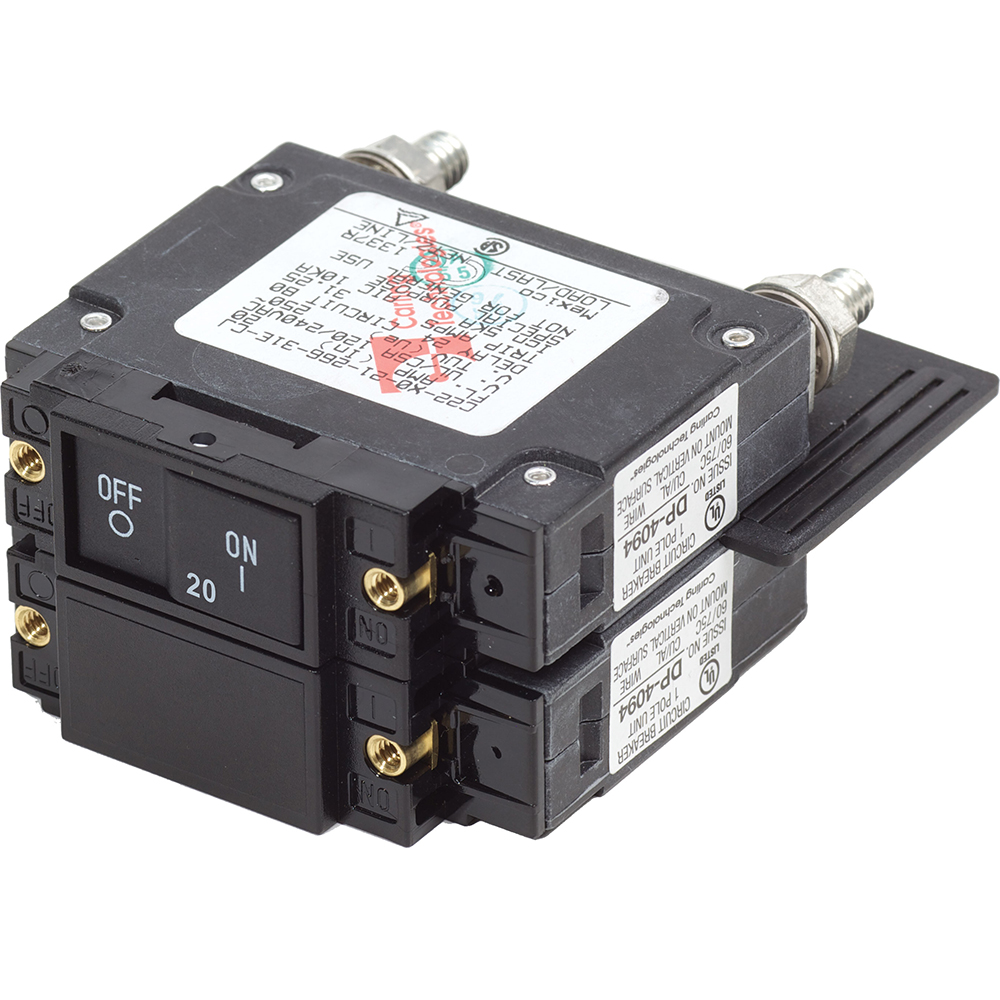

Blue Sea 7463 UL-489 Circuit Breaker - 20A Flat Rocker
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$161.23
7463 UL-489 Circuit Breaker - 20A Flat Rocker
Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)
Specifications:
- Amperage: 20A AC
- Actuator Style: Flat Rocker
- Poles: 2
- Maximum Voltage: 240V AC
- Circuit Breaker Type: Magnetic Hydraulic—Trip free
- Terminal Stud Torque: 35 in-lb (3.95 Nm)
- Interrupt Capacity: 5000A
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Mounting Screw: #6-32 SS
- Mounting Screw Torque: 8 in-lb (0.9 Nm)
- Switching Cycles: 10000
- Weight: 0.23lb (0.1 kg)
