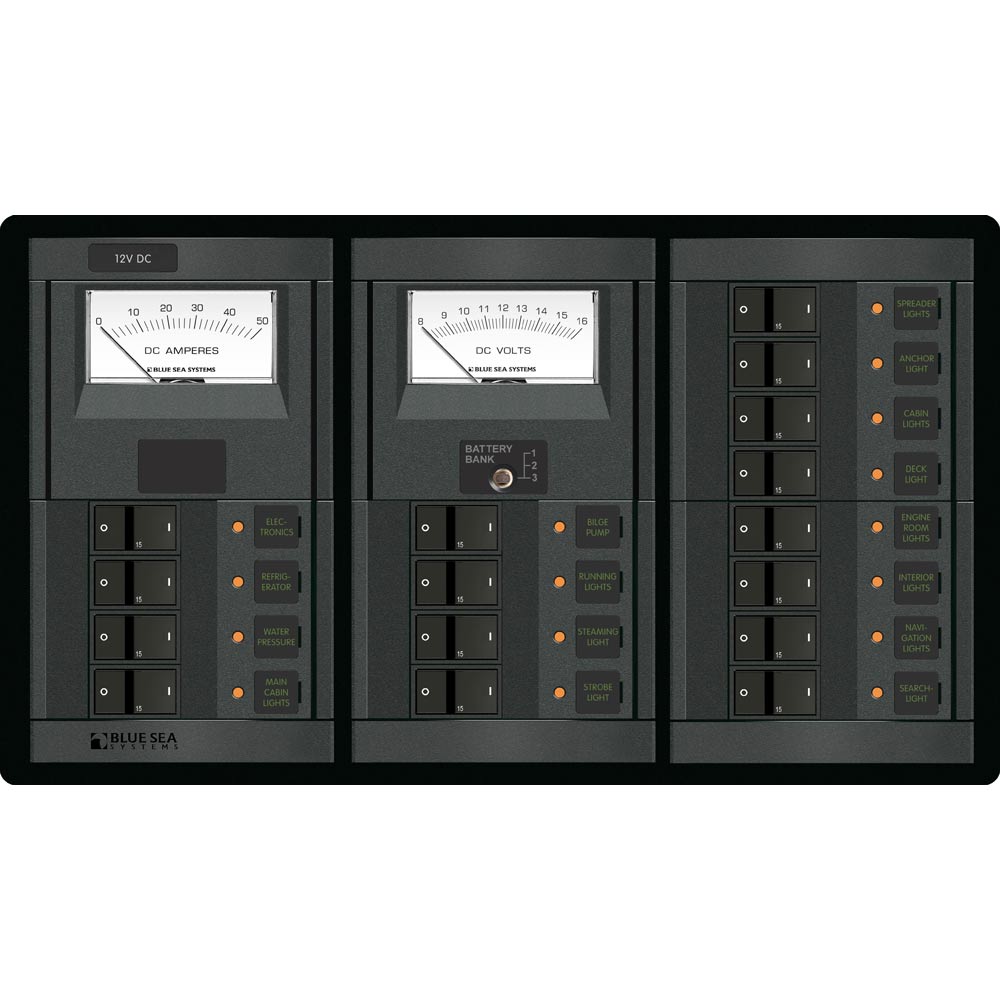

Blue Sea 1201 12V DC 16 Position - w/DC Analog Voltmeter & Ammeter
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$2,351.87
12 Volt DC 16 Position w/DC Analog Voltmeter & Ammeter
Features:
Specifications:
* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(16) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 8003 - DC Analog Voltmeter - 8 to 16V DC (Meter)
(1) - 8022 - DC Analog Ammeter - 0 to 50A with Shunt (Meter)
Features:
- 4 to 32 branch circuits with installed 15 Ampere circuit breakers
- Available with voltmeters, ammeters, and digital multimeters
- Includes 4205-Square Format Label Set
Specifications:
- Positions: 16
- Nominal Voltage: 12V DC
- Maximum Amperage*: 50A per bus
- Height: 7.75" (196.85mm)
- Width: 13.63" (346.2mm)
- Depth: 3.00" (76.2mm)
- Weight: 6.58lb (2.98kg)
* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(16) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 8003 - DC Analog Voltmeter - 8 to 16V DC (Meter)
(1) - 8022 - DC Analog Ammeter - 0 to 50A with Shunt (Meter)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Documentation
| Quick Guide | Download PDF |
|---|---|
| Owner's Manual | Download PDF |
