Blue Sea 1503 - 360 Panel - ELCI + 5 Position 120V AC Flat Rocker
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$1,442.81

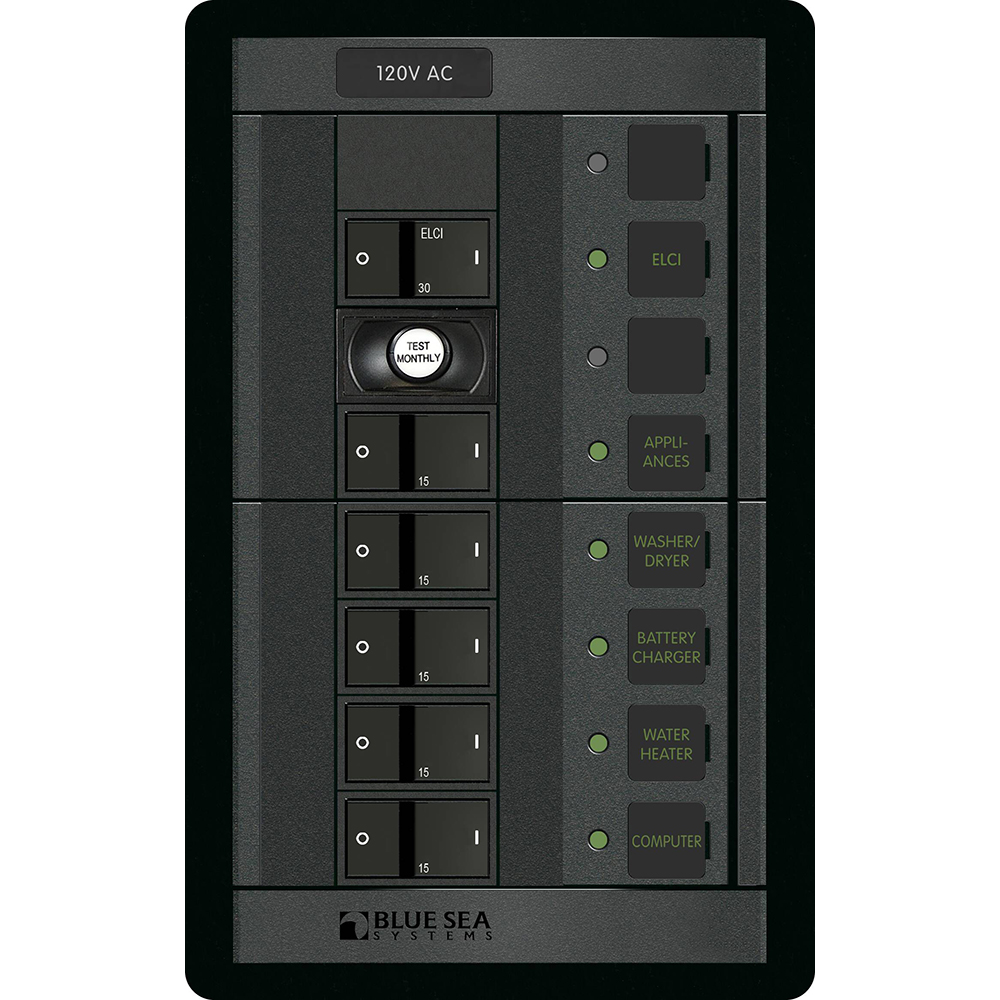

1503 - 360 Panel - ELCI + 5 Position 120V AC Flat Rocker
Part of the Blue Sea Systems Battery Management Panels. This one standard panel features Equipment Leakage Circuit Interrupter (ELCI) protection with branch breakers and will reduce the risk of fire and shock hazards caused by defects in appliances and circuit wiring.
Features:
- Provides Main circuit protection with branch circuits
- Green ON indicating LEDs
- Backlit label positions
Technical Specifications:
- Positions - Five (5) + ELCI
- Amperage - 30A AC trip reference
- Actuator Style - Flat Rocker
- Maximum Voltage - 120V
- Circuit Breaker Type - A-Series: 5 Branch (15A) and ELCI Main (30A)
- Leakage Trip Amps - 30mA
- Dimensions (H x W x D) - 7.75" x 4.88" x 3.99" (197 x 124 x 101mm)
In the Box:
- 1503 Panel
- Instruction Manual
*Sold as an Individual
