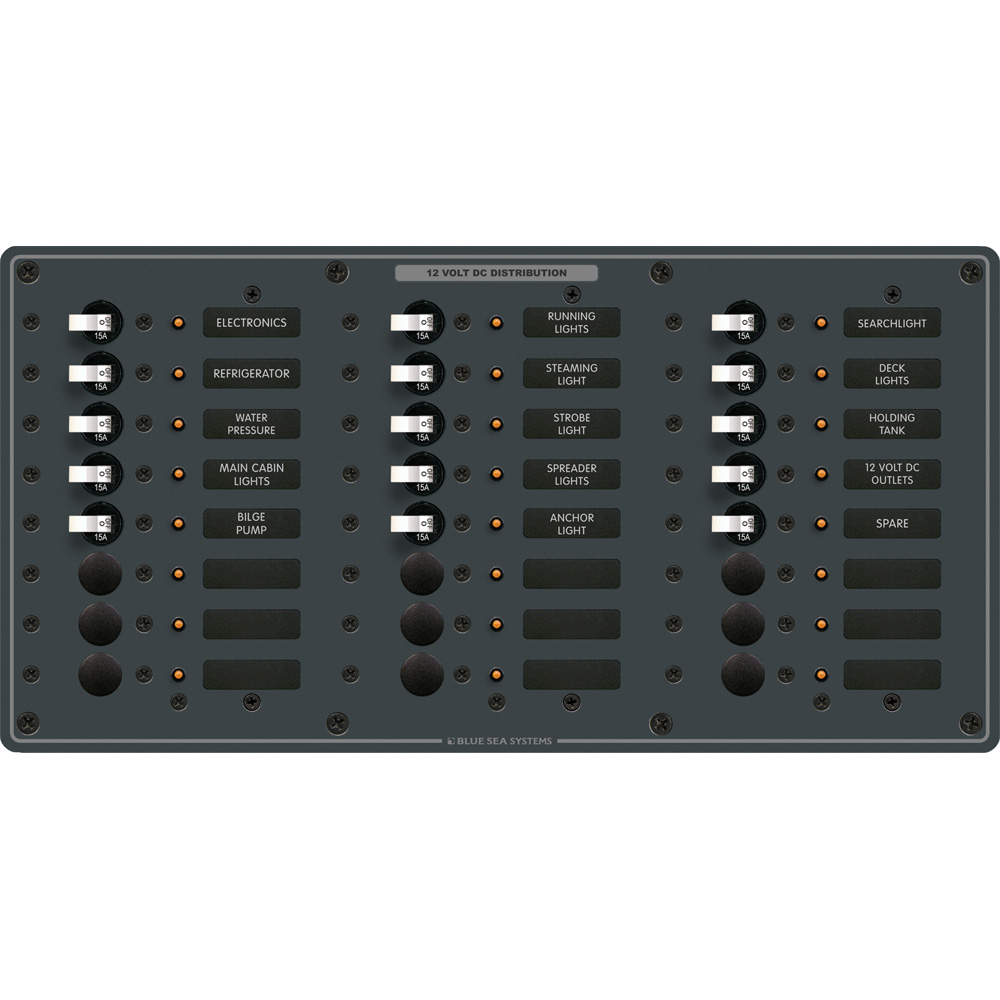

Blue Sea 8264 Traditional Metal DC Panel - 24 Positions

Name: Blue Sea 8264 Traditional Metal DC Panel - 24 Positions
Brand: Blue Sea Systems
SKU: 20770
Price: 1608.22 CAD
Availability: InStock

LSN 20770 MPN 8264 UPC 632085082642 MFR Blue Sea Systems

Special Order

BC, Warehouse

"Special Order" items will take longer to process and ship then "Express" items.
Typically takes no more then 14 days for delivery.
For next day parts. Visit our express parts catalog Here.

In Stock

$1,608.22

Canadian Dollars

Ask a question about this product

Back to: Electrical Panels

8264 Traditional Metal DC Panel - 24 Positions

Features:

All positive, negative and grounding buses installed, fully pre-wired
Panels with meters include toggle switch for mounting up to 3 battery banks
All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
All circuit label positions are backlit on standard panels - No kit required
"ON" indicating LEDs installed in all circuit positions

Specifications:

Positions: 24
Nominal Voltage: 12 VDC/24 VDC
Maximum Amperage: 100A per bus
Height: 7.50" (190.5 mm)
Width: 14.75" (374.65 mm)
Weight: 7.45lb. (3.38 kg)
