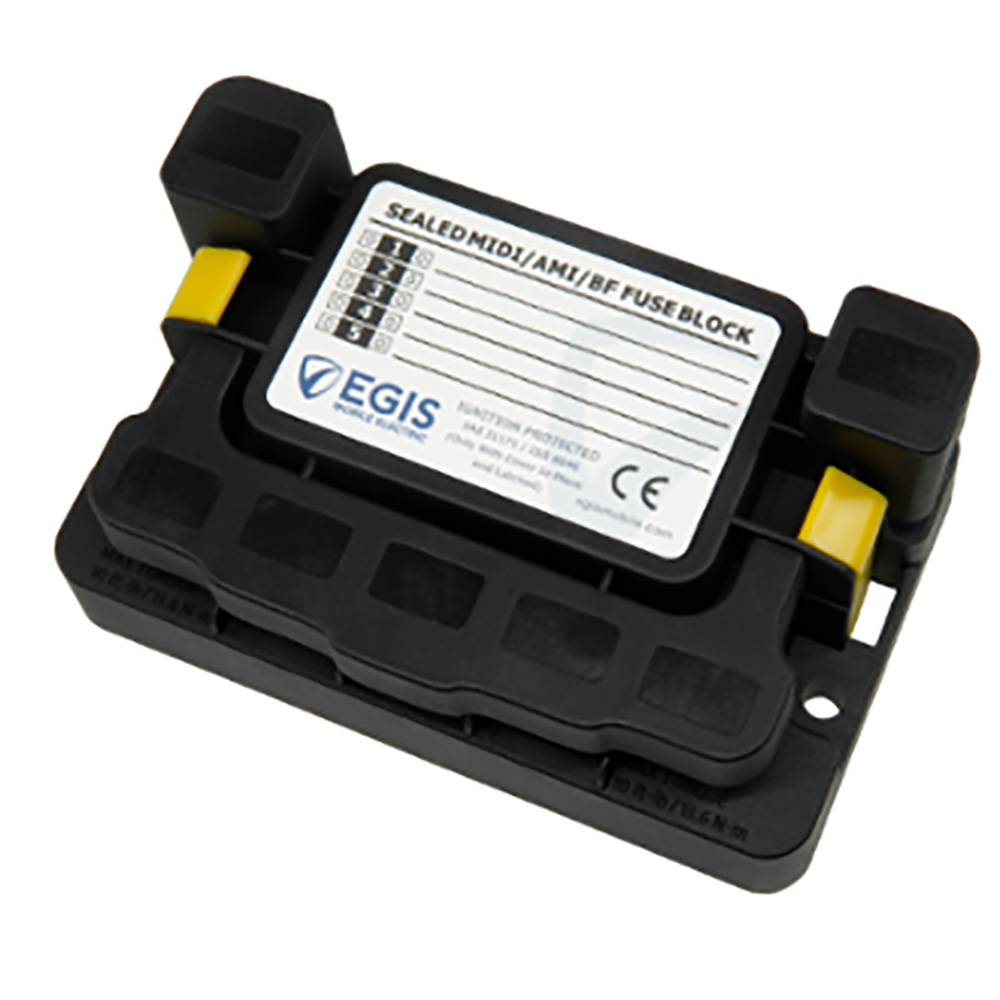

Egis MIDI 5x Fuse Block w/Sealed Cover
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$116.62
MIDI 5x Fuse Block with Sealed Cover
- Sealed marine grade construction fuse block compatible with 5 MIDI/AMI/BF type fused outputs
- Protects add-on circuits from accidental short circuits to frame ground or battery negative, or from overload events
- Expandable with dual, triple, and quad link busbars for plug-and-play install and complete switching/protection solutions
Features:
- Reduce Installation Space when combined with other Egis Mobile Electric power management devices and other sealed circuit breaker/fuse blocks.
- Expandable with Dual, Triple, and Quad Link Busbars for Plug and Play installation and Complete Switching/Protection Solutions.
- Bullet-proof Construction: Sealed to IP66/IP6K9K, high-temperature materials, Gore-Tex vent allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
- Protective Cover Stored 2 (Two) spare fuses and 4 (Four) screws. Easy to operate latching mechanism holds cover on securely.
Specifications:
- Total Continuous Current Amps: 500
- Max MIDI?AMI Fuse Value (Amps): 200
- Ingress Protection Rating: IP67
- Ignition Protected (SEA J1171)? Yes
- Output Stud Size: M6
- Input Stud Size: M8
Documentation
| Brochure | Download PDF |
|---|
