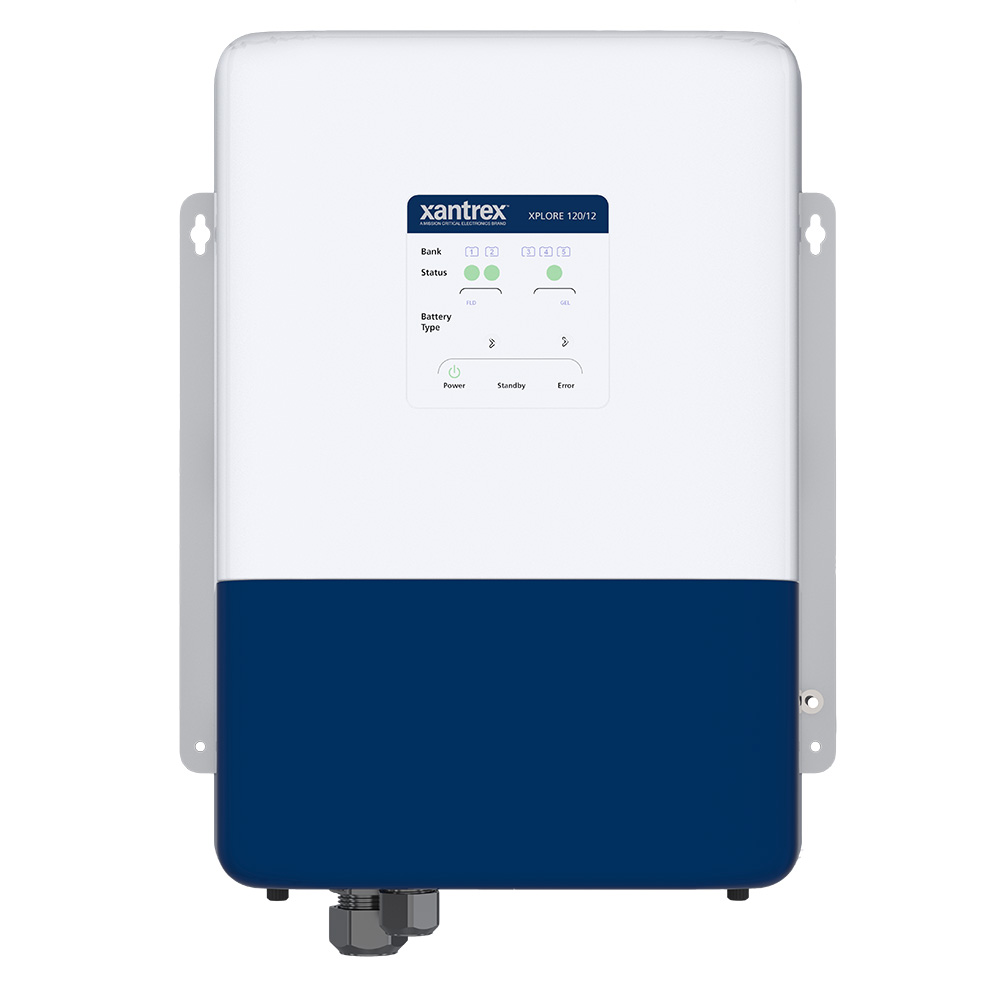

Xantrex XPLORE Battery Charger - 12V - 120 Amp - 6-Bank

XPLORE Battery Charger - 12V - 120 Amp - 6-Bank

The XPLORE 120/12 battery charger is the largest and most powerful charger on the market today. The universal, auto-ranging AC input and 120 amps of output current ensure ultra-fast and reliable worldwide charging. With up to six output banks of simultaneous charging combined with the ability to charge two battery banks with differing chemistries, the XPLORE 120/12 eliminates the need to have separate single-chemistry chargers and minimizes installation and wiring costs for your house bank and engine bank.

It is also equipped with an easy-to-read front panel LED display for basic configuration and status information. Advanced monitoring and configuration are enabled by NMEA 2000 protocol or Xantrex app using the Xantrex BLE module.

Performance Features:

• 6 Battery Banks and Dual-Chemistry Charging
• Xantrex Lithium and Custom Battery Charging
• NMEA 2000 Connectivity
• Xantrex App Connectivity
• Auto-ranging universal input voltage (80-265 Vac, 45-65 Hz)
• Power Share: automatically reduces charging output to prevent nuisance tripping of the AC input breaker.
• Quiet Mode: when enabled, the internal fan is turned off and the charger operates at a reduced output when quietness is needed.
• Storage Mode: automatically refreshes your batteries once every several days of non-use to ensure optimal battery condition.
• Dead Battery Charging: the ability to charge a battery as low as 0V back to full-charge

Protection Features:

• Reverse battery polarity protection
• Drip-proof design
• Over and under-temperature protection
• DC over-voltage protection
• Battery overcharging protection
