Trident Marine 2" Type A2 Fuel Fill Hose - Sold by the Foot
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$41.69

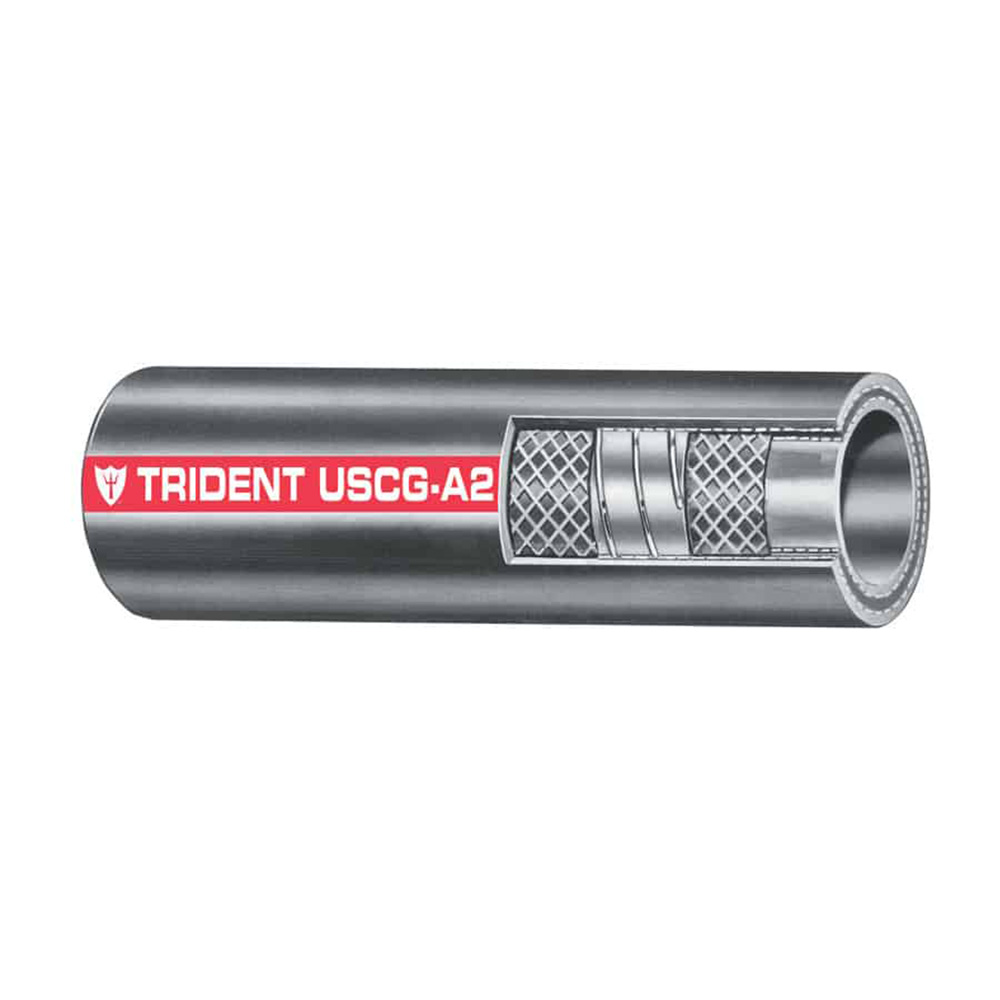

2" Type A2 Fuel Fill Hose - Sold by the Foot
Trident 2" ID A2 fuel fill hose for gasoline (including ethanol blends) and diesel (including bio diesel blends).
Features:
- Sold by the foot
- This hose is built with the best fuel, fire, and age-resistant formulation
- Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
- Also, provides excellent bend-ability
Applications:
- Marine Fuel Hose for fill and vent plus diesel distribution
- Approved, for all marine fuels including gasoline, alcohol blends, diesel and bio-diesel
Construction:
- Tube & Cover: NBR / Neoprene
- Reinforcement: High tenacity polyester 2 spiral, spring steel helix
- Temperature Range: -20°F to 212°F (-20ºC to 100ºC)
Specifications:
- Inner Diameter: (inch) 2" / (mm) 50.8
- Outer Diameter: (inch) 2.48 / (mm) 63.5
- Wall: (inch) 0.25 / (mm) 6.4
- Working Pressure: (psi) 50 / (mpa) 0.345
- Bend Radius: (inch) 7.0" / (mm) 178
*The #327 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2; and is NMMA Type Accepted, CE certified, and Lloyds Registry Type Approved
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.Documentation
| Quick Guide | Download PDF |
|---|
