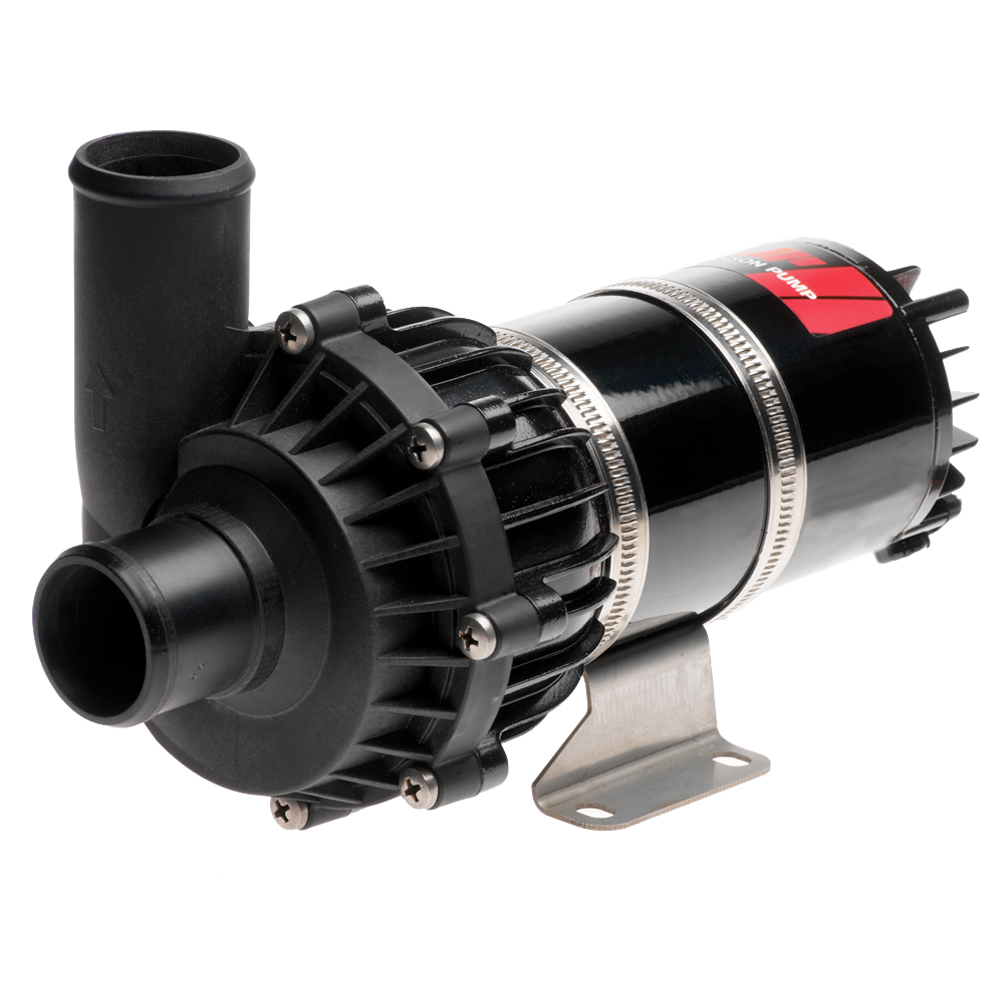

Johnson Pump CM90 Circulation Pump - 23.7GPM - 12V - 1-½" Outlet
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$752.66
CM90 Circulation Pump - 23.7GPM - 12V - 1-½" Outlet
A line of compact magnetic driven centrifugal pumps which combine high flow
rates with very low electric current consumption. Suitable for fresh water,
ethylene glycol and salt water circulation.
System Pressure: -0.3 to +3.0 bar; stationary max. 4.0 bar
Liquid: water/glycol mixture; max. 60% glycol, fresh and salt water
Motor Service Life: More than 5,000 hours at nominal voltage 10,000
start/stops. Interchangeable motor.
Motor, Voltage: Nominal 13.6V DC for use between 10-16V Nominal 27.2V
DC for use between 20-32V
Input Power: Max. 125W
Dry Running: 30 minutes
Dimensions: 244mm (L) x 120mm (W) x 150mm (H)
Ports:Ø 20mm (3/4") & Ø 38mm (1-1/2")
Weight: 3.0kg (6.6lbs)
Body: PPA, glass-fiber reinforced
Mounting: Separate universal bracket for flat surfaces
A line of compact magnetic driven centrifugal pumps which combine high flow
rates with very low electric current consumption. Suitable for fresh water,
ethylene glycol and salt water circulation.
System Pressure: -0.3 to +3.0 bar; stationary max. 4.0 bar
Liquid: water/glycol mixture; max. 60% glycol, fresh and salt water
Motor Service Life: More than 5,000 hours at nominal voltage 10,000
start/stops. Interchangeable motor.
Motor, Voltage: Nominal 13.6V DC for use between 10-16V Nominal 27.2V
DC for use between 20-32V
Input Power: Max. 125W
Dry Running: 30 minutes
Dimensions: 244mm (L) x 120mm (W) x 150mm (H)
Ports:Ø 20mm (3/4") & Ø 38mm (1-1/2")
Weight: 3.0kg (6.6lbs)
Body: PPA, glass-fiber reinforced
Mounting: Separate universal bracket for flat surfaces
