Lopolight 3NM Double Stacked Ice-Class Port Light
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$4,527.91

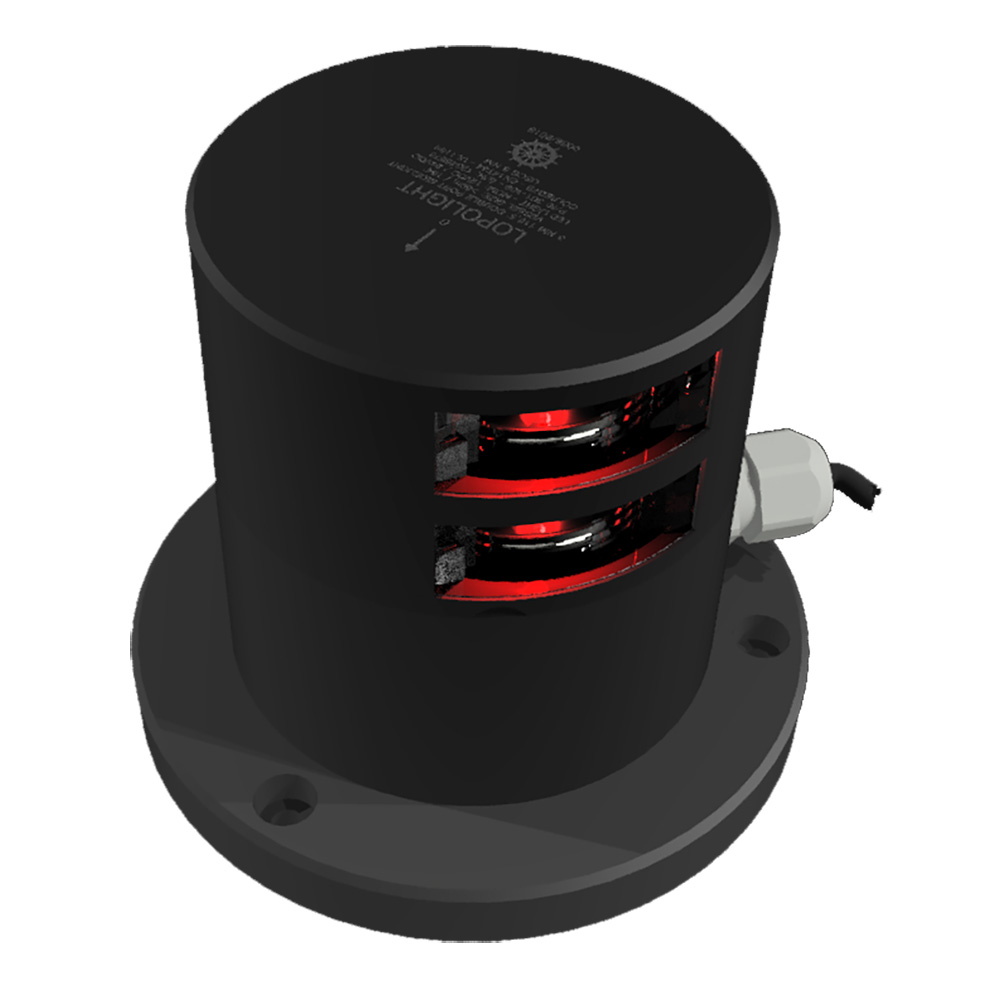

3NM Double Stacked Ice-Class Port Light
This double-stacked light has a visibility of 3NM and is meant for the port side of a vessel. The de-icing function is automatic and controlled by the sensor in the light.
Includes Three Cable Glands:
- 9-17mm (3/8-11/16 in.) cable diameter
- 7-13mm (1/4-1/2 in.) cable diameter
- 4.5-10mm (5/32-3/8 in.) cable diameter
Specifications:
- Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
- Mounting: Horizontal
- EAN: 5704438014114
- Light Color: Red
- Intensity: >15cd
- IP rating: IP68
- Connection: Plug connector
- Visibility: 3NM
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Current Consumption (mA @ 12VDC): 153
- Current Consumption (mA @ 24VDC): 92
- Dimensions Metric: Ø92,5mm x 125,5mm
- Dimensions Imperial: Ø3.6" x 4.9"
- Certification: This navigation light conforms to USCG Commandant Instruction M16672.2.
- Operating Temperature: -60°C to 55°C
- Operating Voltage: 20-32VDC
- Power Draw (W): 2,2
- Vessel Size: Over 50M
- Min. Feed Wire Gauge: 1.5mm2 AWG18
- Weight (kg): 1.4 Kg
- Weight (oz): 49.38 Oz
Documentation
| Owner's Manual | Download PDF |
|---|---|
| Installation Guide | Download PDF |
