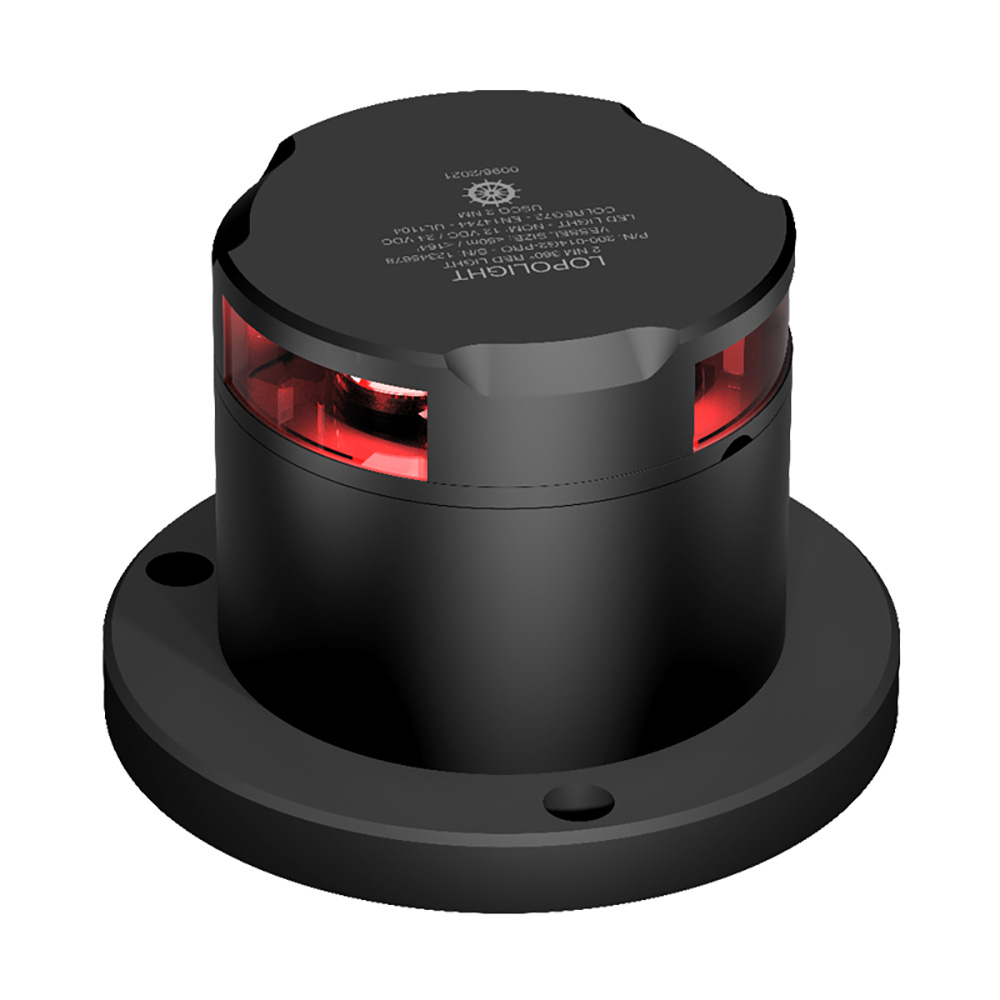

Lopolight 360-Degree Red Nav Light w/De-Icing Function - Black Housing
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$1,888.33
360-Degree Red Nav Light with De-Icing Function - Black Housing
This 360-degree navigation light has a red-light color and black housing while having up to 2 nautical miles of visibility.
Features:
- Built-in de-icing function
- Horizontally mounted on a POM base (IP68)
- Side cable direction
- Included HDPE base plate
- Quality Cable Glands 2 Sizes Are Included: 7-13mm (1/4"-1/2") cable diameter & 4.5-10mm (5/32"-3/8") cable diameter
Specifications:
- Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
- Mounting: Horizontal
- EAN: 5704438019331
- Min. Feed Wire Gauge: 1.5mm2 AWG18
- Light Color: Red
- Intensity: >5.4cd
- Visibility: 2NM
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- IP rating: IP68
- Connection: Plug connector
- Current Consumption (mA @ 24VDC): 85
- Current Consumption (mA @ 12VDC): 150
- Weight: 0.81 kg (35.27 oz)
- Dimensions Metric: Ø92,5mm x 75mm
- Dimensions Imperial: Ø3.6 x 2.9
- Operating Temperature: -60 degrees C to 55 degrees C
- Operating Voltage: 10-32VDC
- Power Draw (W): 2,1W (When de-icing 15W @24VDC)
- Vessel Size: Under 12M,12-20M,20-50M
Documentation
| Quick Guide | Download PDF |
|---|---|
| Installation Guide | Download PDF |
