Lopolight Red Port Light - 2NM - Silver Housing w/FB Base
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$602.59

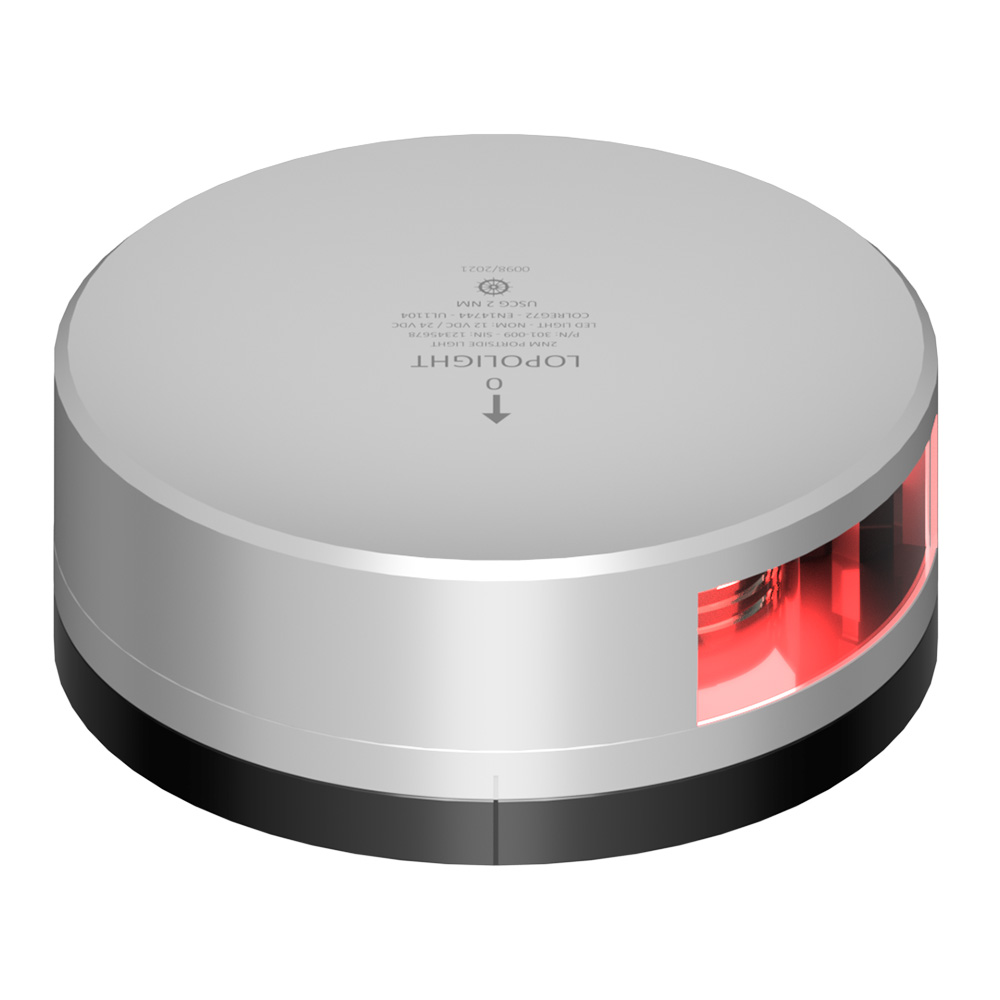

Red Port Light - 2NM - Silver Housing with FB Base
This red port light has a silver housing, is horizontally mounted, and has a two-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.
Features:
- Silver anodized aluminum housing
- 2.5m cable is included
Specifications:
- Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
- Mounting: Horizontal
- EAN: 5704438043725
- Min. Feed Wire Gauge: 0.5mm2 AWG22
- Light Color: Red
- Visibility: 2NM
- Included In the Package: 1 Navigation light, pre-cabled with 2.5 meters shielded marine grade cable and installation guide
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- IP rating: IP68
- Connection: 2.5m cable
- Current Consumption (mA @ 24VDC): 50
- Current Consumption (mA @ 12VDC): 90
- Dimensions Metric: Ø92.5mm x 36mm
- Dimensions Imperial: Ø3.6" x 1.4"
- Operating Temperature: -25 degrees C to 55 degrees C
- Operating Voltage: 10-32VDC
- Power Draw (W): 1.2
- Vessel Size: Under 12 meters, 12-20 meters, and 20-50 meters
Documentation
| Quick Guide | Download PDF |
|---|---|
| Installation Guide | Download PDF |
