Southco Compression Latch Large Vise Action Stainless Steel Passivated Silver
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$166.79
Back to: Latches

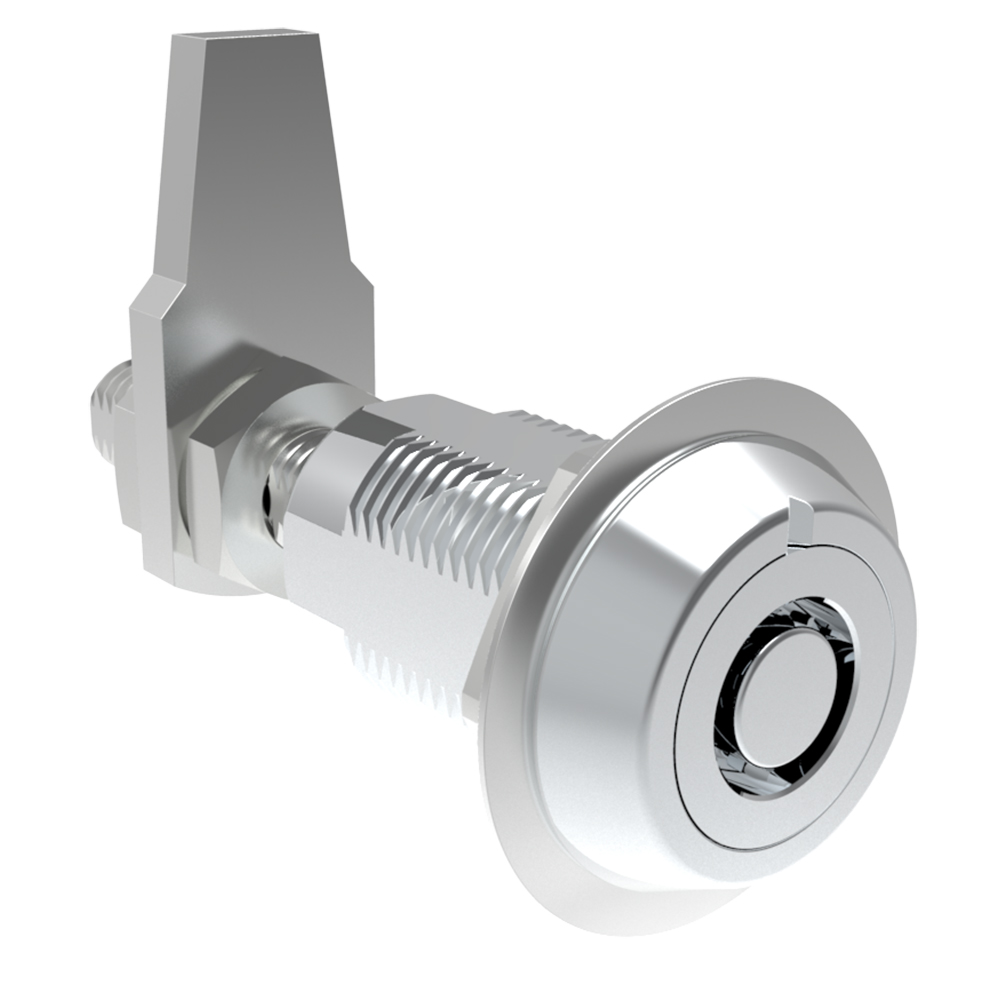

Compression Latch Large Vise Action Stainless Steel Passivated Silver
Specifications:
- Material: Stainless Steel
- Finish: Passivated
- Color/Appearance: Silver
- Access Restriciton: Key Locking
- Access Restriction: Tool
- Grip Type: Adjustable
- Mounting Style: Single Hole Mount
- Max. Outer Panel Thickness: 18.000 mm (0.71")
- Min. Outer Panel Thickness: 1.000 mm (0.04")
- Head Style: Southco Tubular Key
- Cam Attached: No
- Rotation: Type A - Turn Clockwise to Latch
- Size Series: 19.1 mm
- Compliance Specification: UL FTTA2/FTTA8 Type 1
- Grip - Maximum: 59.600 mm (2.35")
- Grip - Minimum: 43.900 mm (1.73")
Documentation
| Quick Guide | Download PDF |
|---|
Accessories
- SKU 80614 — MFG# E3-5-15
