Southco Compression Latch Lift & Turn - Flush - Adjustable
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$41.69
Back to: Latches

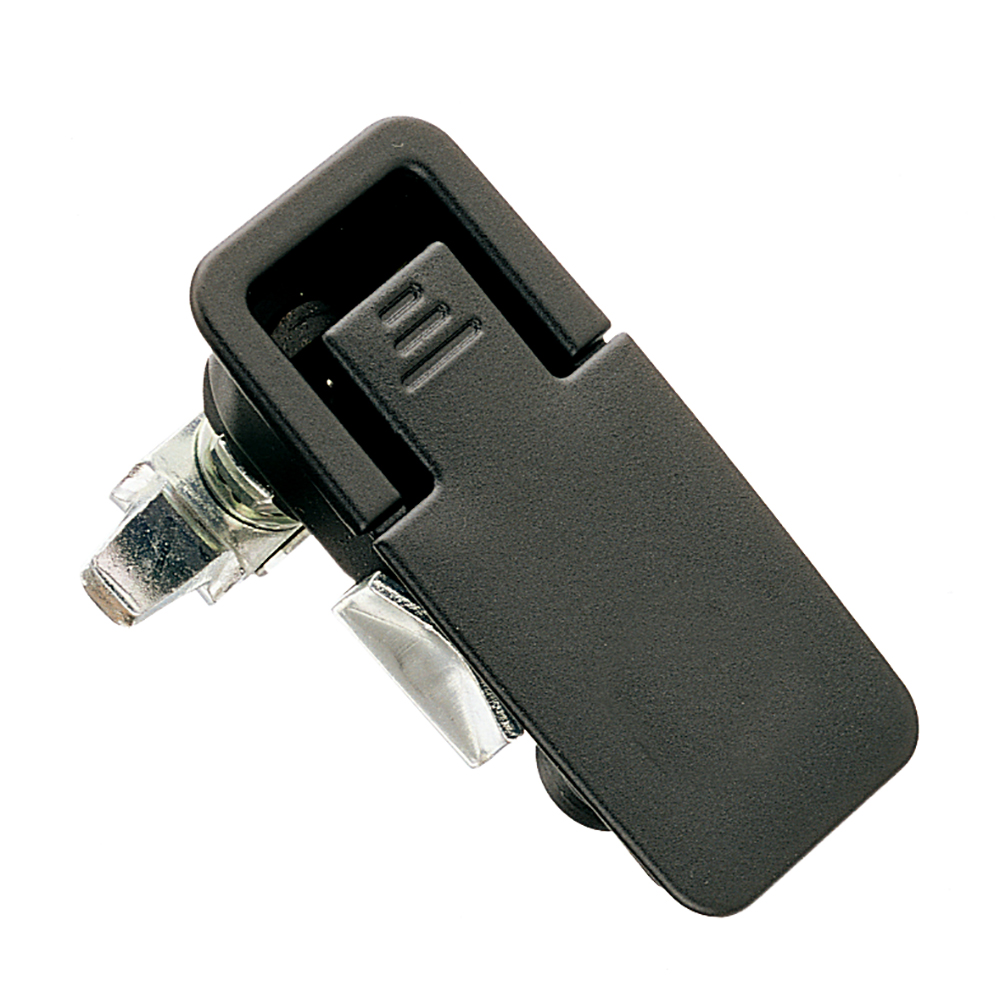

Compression Latch Lift & Turn - Flush - Adjustable
The composite Lift & Turn latch is a light- to medium-duty latch, utilizing engineering plastic in its major components to reduce weight yet maintain excellent strength. When the lever is in the upright position, it rotates 360° to move the cam behind the support in any one of three 90° positions. Once in place, the lever closes flush with the housing, providing 5 mm of axial pull, locking the device with an over-center action.
The latch is secured into a panel by a mounting bracket that adjusts to various thicknesses. Snap-in installation is provided for 5 mm thick panels. By using cams of various off sets, different grip ranges are easily accommodated.
Features:
- Broad Application Range - Latch can be fi tted to panel range 0.5 mm – 9.0 mm and has a grip range of between 10.5 mm – 49.4 mm
- Double Action Latching & Compression - Allows secure fastening of doors and panels which contain gaskets and seals
- No Adjustments Required When Fitted - Fixed cam design prevents incorrect grip setting
- 4 Cam Orientation Settings - Cam may be fitted at 90° / 180° / 270° / 360° to the latch body center line, allowing for a wide variety of mounting positions
- Robust Polyamide Construction - High strength nylon is used in the main components to ensure a durable product. The material has a V2 flammability rating to UL94
Typical Applications
- Telecoms base station doors & side access panels
- Electrical switchgear cabinets
- Computer server racks & enclosures
- Games machine doors & panels
- HVAC control equipment enclosures
- Storage lockers on stations/building sites
- Cupboards/lockers on trains/boats/commercial vehicles
