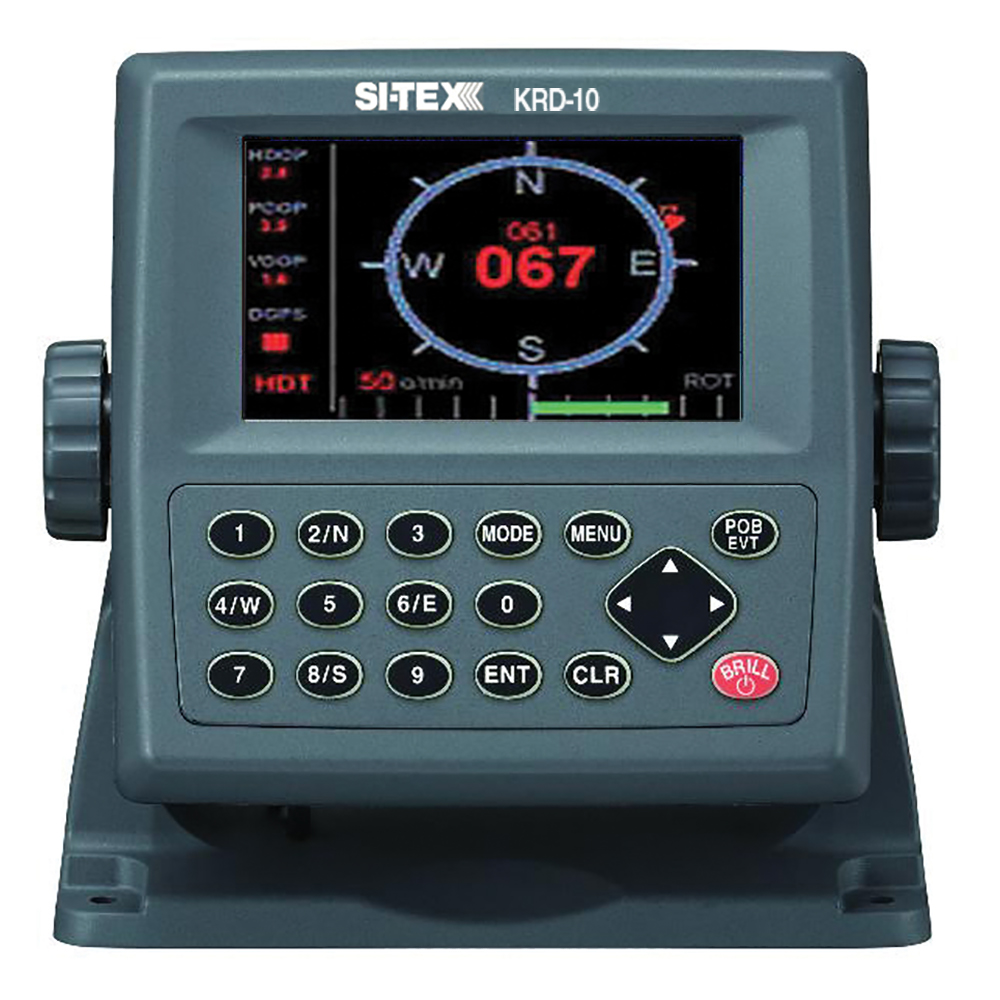

SI-TEX Color LCD NMEA 0183 Repeater
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$1,068.91
Color LCD NMEA 0183 Repeater
Features:
- Maximum performance and simple setup
- Clear 4.3" Color LCD Display that is viewable even in the harshest sunlight conditions
- Bonded color LCD ensuring condensation free operation as well as great visibility
- Utilizing NMEA-0183 interface external sensors can easily be connected for simple and reliable operation
- 18 Different Display Modes
- Converts from L/L to Loran C, Loran A, & Decca LOPs
- Track Plotter features 10,000-point, 100 Route, & 3,000 track point memory
- Low 4.5-watt power consumption, 10.8 to 31.2 VDC power supply
- Very easily flush mounted
Specifications:
- SI-TEX Model KRD-10
- Display: 4.3" color LCD
- Display Resolution: 480 x 272 pixels (WQVGA)
- Display Mode: Compass, Rate of turn, Rudder Angle, Navigation, Plotter, Water Temperature, Highway, Weather Info,
- Standard Input & Output: NMEA-0183 versions 1.5, 2.0, 3.0
- Nominal Voltage: 10.8 to 31.2 VDC
- Water Protection: IPX6
- Dimensions: 5.75" W x 5.75" H x 2.75" D
In the Box:
- KRD-10 Display with Mounting Bracket, Knobs, Sun Cover
- Power Cable & NMEA Interface Cable
- Operation Manual
18 Functions Including:
- NAVIGATION
- STEERING
- HIGHWAY
- DEPTH
- WATER TEMPERATURE
- WIND
- HEADING
- COURSE
- RATE OF TURN
- POSITION
- CURRENT
- WEATHER DATA
Documentation
| Brochure | Download PDF |
|---|
