Digital Yacht NMEA 2000 T-Connector - 1-Way Extension Block
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$55.53

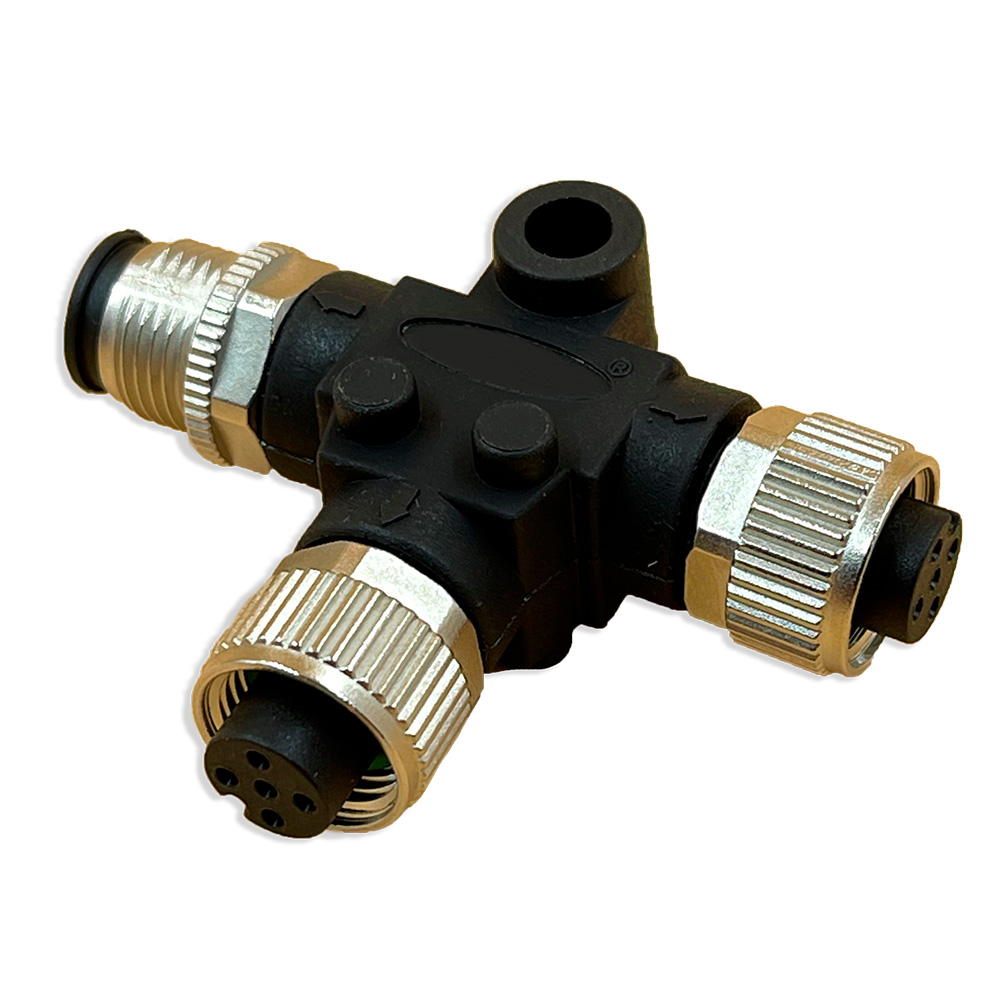

NMEA 2000 T-Connector - 1-Way Extension Block
As the NMEA 2000 network expands beyond the 3-device limit of Digital Yacht’s NMEA 2000 Starter Kit, users can use one of these single T-pieces to add devices. With male > female > female connectors, multiple T-pieces can be plugged together or added to the 4-way T-piece included in the starter kit. The lower “drop cable” connector is female so that there are no exposed pins when the drop cable is removed.
*Digital Yacht can supply NMEA 2000 cables and connectors to expand the NMEA 2000 to whatever size is needed (up to the maximum 50 NMEA 2000 device limit).
Features:
- NMEA 2000 Single T-Piece
- Standard “Micro C” connectors make it very easy for future network expansion
- Metal connectors improve reliability
- Waterproof rating of IP68
Documentation
| Quick Guide | Download PDF |
|---|
