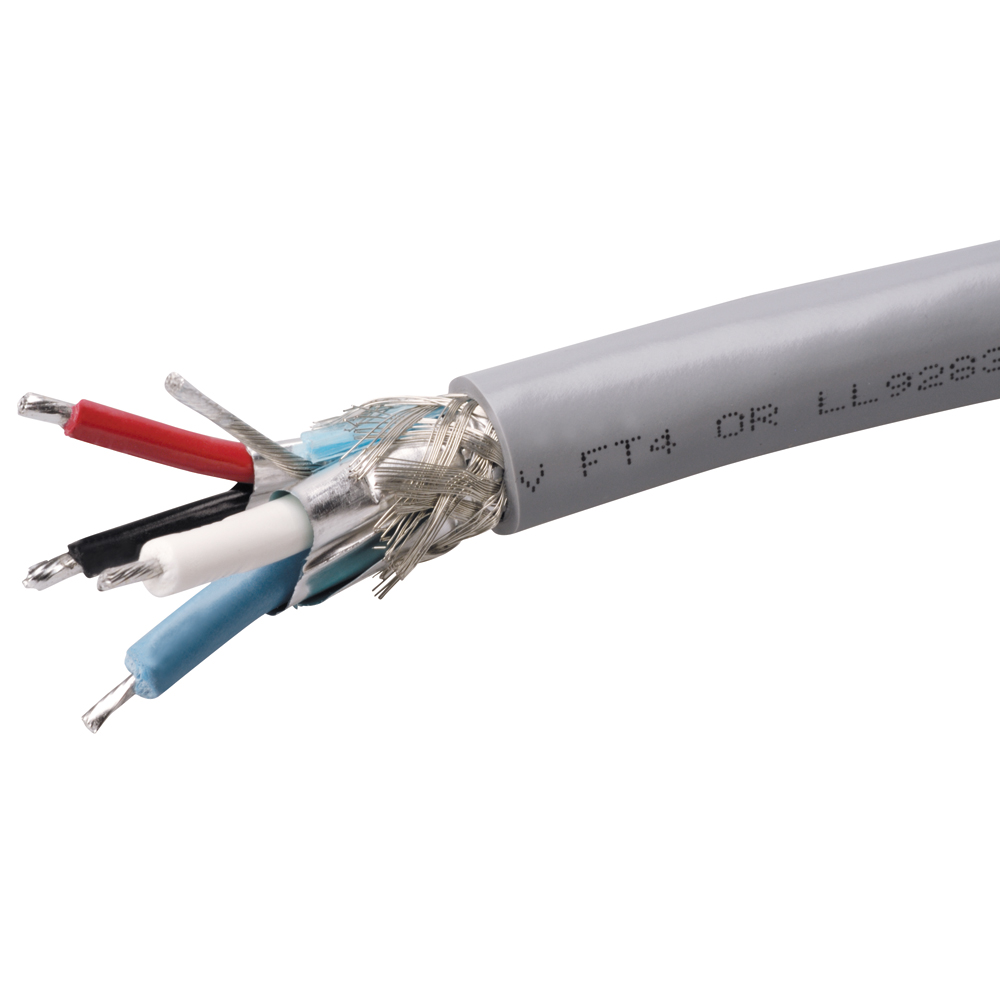

Maretron Mid Bulk Cable - 100 Meter - Gray
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$757.55
Specifications
Overall
Outer Jacket Mat/Color: PVC/Gray - DG1 PVC/Blue - DB1
Insulation Material: PE (data wires), PVC (power wires)
Construction: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)
Power Pair
Wire: 2x16 (1.29mm) AWG
Resistance/Conductor: 4.1 Ohms/1000 ft max
Max Amperage: 14 Amps Color Code: Red/Black
Data Pair
Wire: 2x20 (0.81mm) (AWG)
Characteristic Impedance: 120 Ohms +/- 10%
Capacitance: 10.75 pF/ft
Color Code: White/Blue
Approvals
UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
NMEA: NMEA 2000 Approved
IEC: IEC-61162-3
