Albin Group Ballast Pump FIP F4 12V
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$417.00

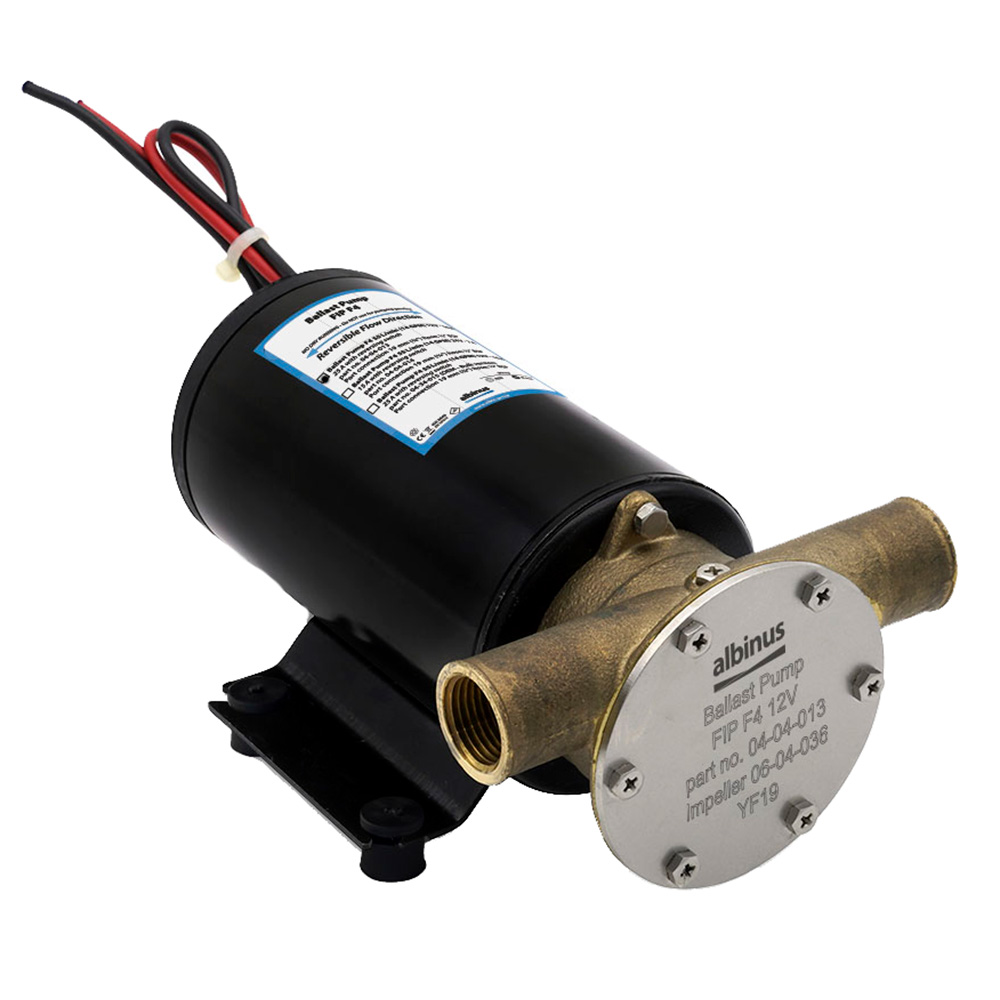

Ballast Pump FIP F4 12V
DC 12V F4-size ballast pump with a capacity of 55 L/min (14.25 GMP). This pump is used for ballast pumping of water between tanks.
Features:
- Pump body in brass, stainless steel shaft, premium ballast MC19 compound impeller, and seawater-resistant shaft seal
- Self-priming up to a 3m vertical lift
- Reversible flow direction
- 25A fuse reversing
- 16A normal duty
- Protected against ignition by surrounding flammable gases, ISO 8846
- Replacement premium ballast impeller in MC19 compound, PN 06-04-036
Specifications:
- Port Connections: 3/4 in. (19mm)
- Hose Connection: 1/2" threaded BSP
- Weight: 0,8 kg/1 Lb
- Dimensions (L x H x W) (mm/in): 180/7 x 90/3.5 x 120/4.7
- Type: Reversible flow direction by changing polarity
- Certification: CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance
