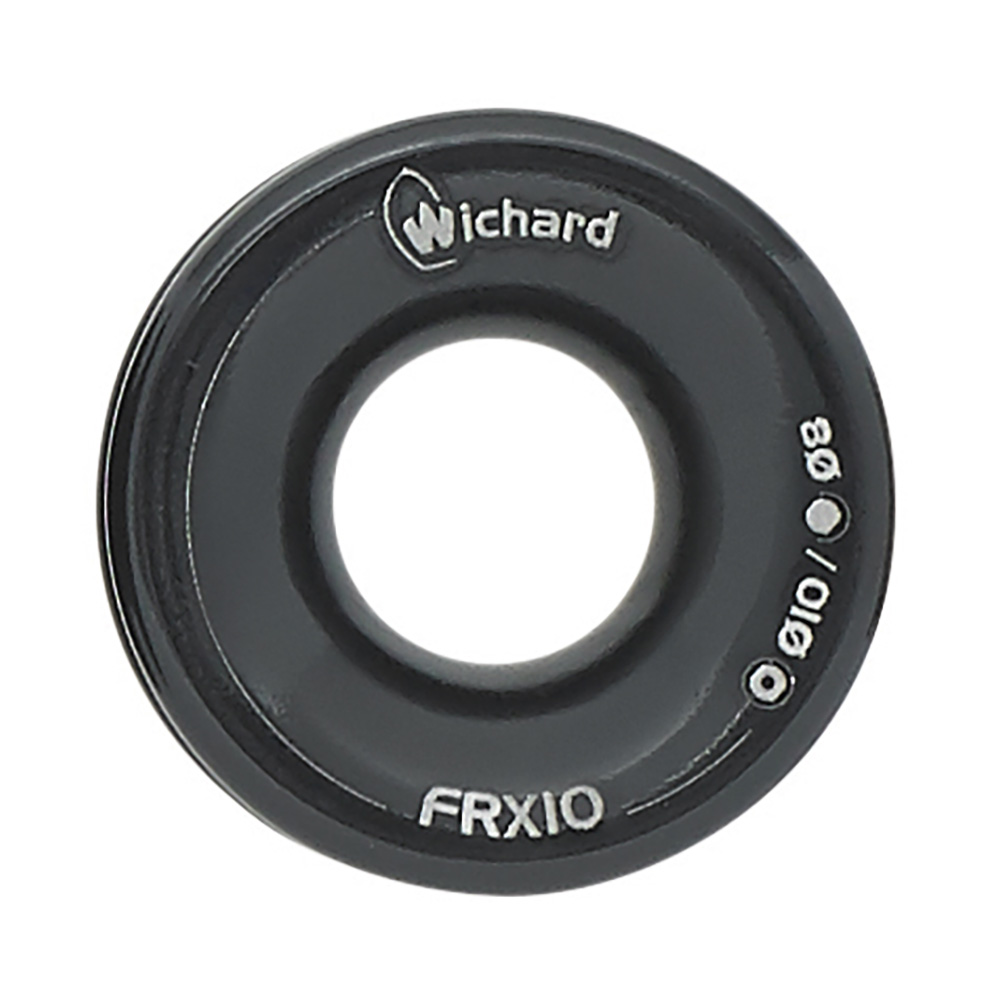

Wichard FRX10 Friction Ring - 10mm (25/64")
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$29.18
You save:
$5.14
FRX10 Friction Ring - 10mm (25/64")
Features:
- Efficient and light
- FRX Wichard thimbles are efficient, light, and reliable
- Very strong and can be used for heavy loads and semi-static lines
- FRX thimbles are designed to make your lines run smoothly with minimum wear
- They are hard anodized (50 microns) for a longer lifespan
Applications:
- Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and more
Specifications:
- Materials: Anodized aluminium
- Working load: (lb) 1760 / (kg) 800
- Weight: (lb) 0.011/ (g) 5
- A: (inch) 5/16" / (mm) 8
- B: (inch) 25/64" / (mm) 10
- C: (inch) 15/32" / (mm) 12
- D diameter: (inch) 63/64" / (mm) 25
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Documentation
| Quick Guide | Download PDF |
|---|
