Wichard Self-Locking Allen Head Pin Bow Shackle - 6mm Diameter - 1/4"
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$53.99
You save:
$9.52

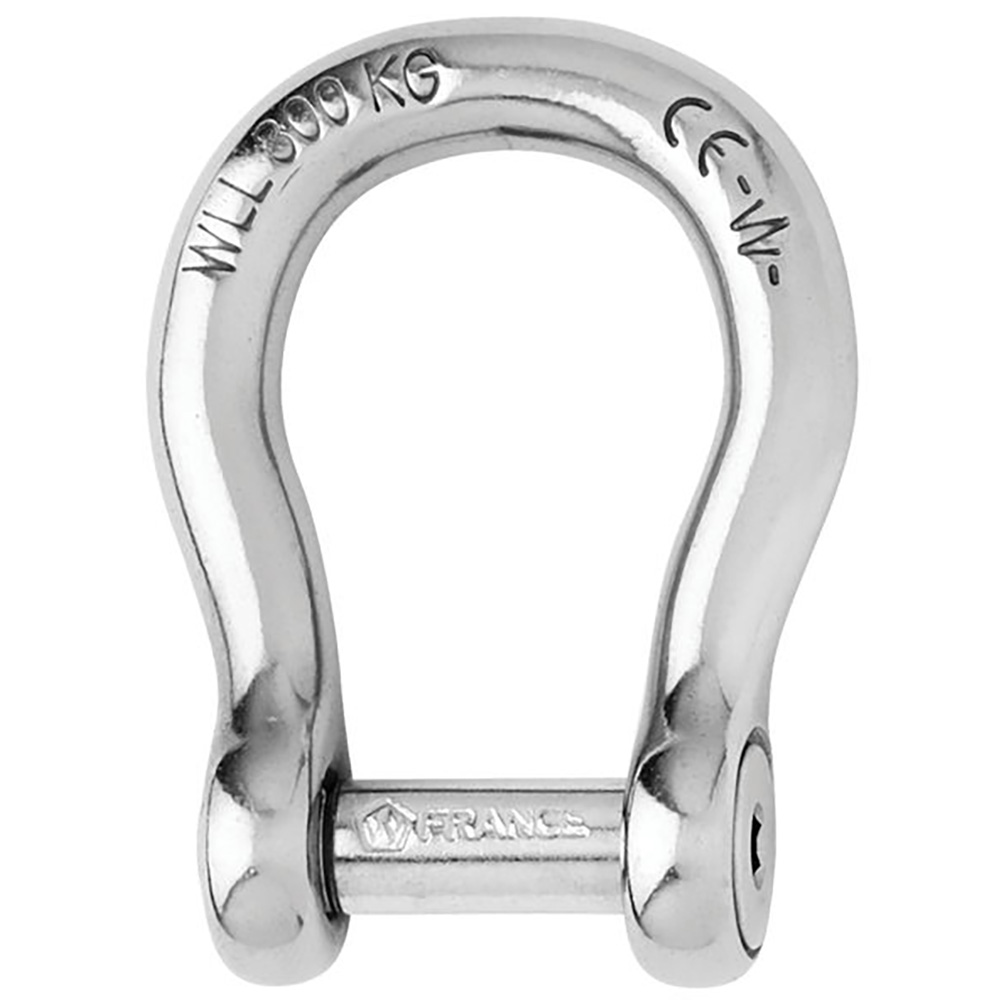

Self-Locking Allen Head Pin Bow Shackle - 6mm Diameter - 1/4"
Features:
- Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
Applications:
- Ideal to link chains and anchor
- On the halyard, avoids damaging the sails
- To be used when the clutter is reduced
- To be used when ample room is required
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 1320 / (kg) 600
- WLL: (lb) 660 / (kg) 300
- Breaking load: (lb) 3300 / (kg) 1500
- Weight: (lb) 0.064 / (g) 29
Dimensions:
- A: (inch) 1 1/16" / (mm) 27
- B: (inch) 15/32" / (mm) 12
- C: (inch) 15/64" / (mm) 6
- D: (inch) 15/32" / (mm) 12
- D diameter: (inch) 15/64" / (mm) 6
- E: (inch) 13/64" / (mm) 5
- F: (inch) 3/64" / (mm) 1
- M: (inch) 1 17/64" / (mm) 32
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
*Sold as an Individual
