Wichard Self-Locking Bow Shackle - Diameter 12mm - 15/32"
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$139.57
You save:
$24.63

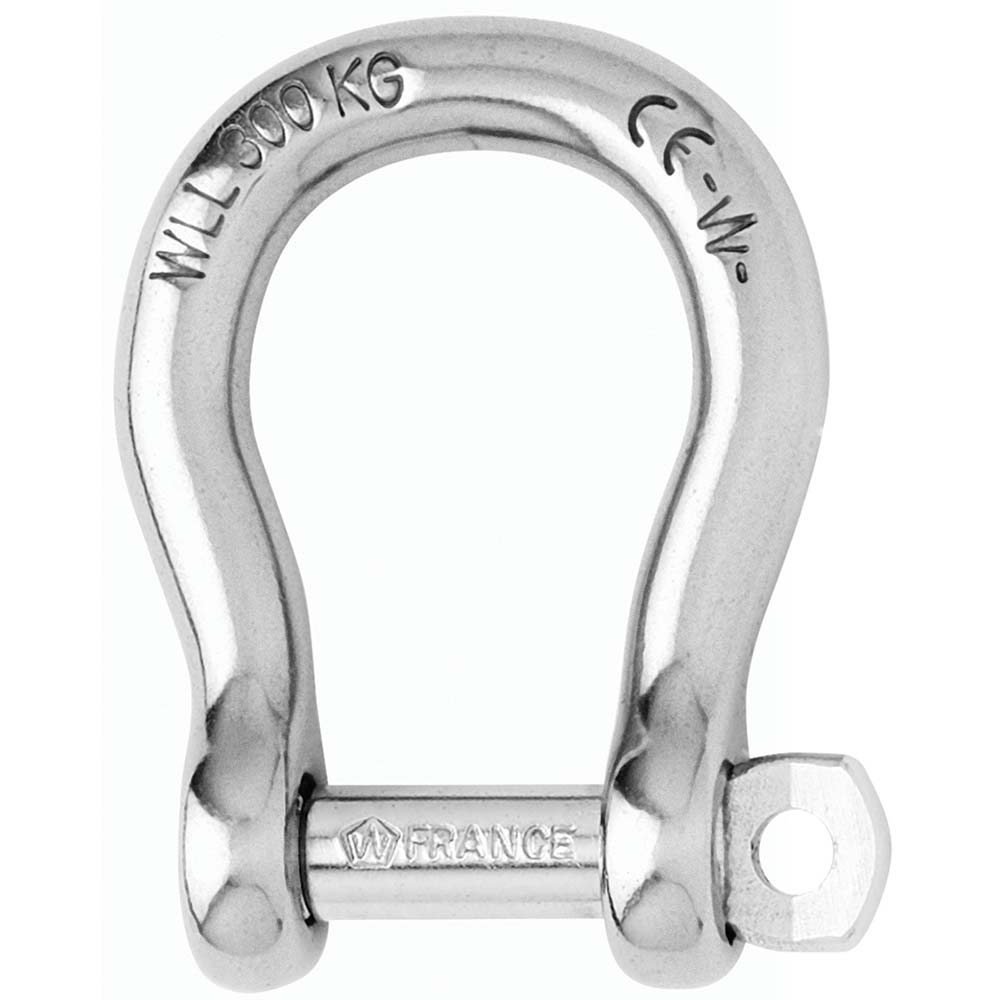

Self-Locking Bow Shackle - Diameter 12mm - 15/32"
Features:
- Self-locking bow shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- To be used when ample room is required
- Possibility to attach several lines or cables
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 4580
- WLL (lb) 2640
- Breaking load (lb) 13220
- Weight (lb) 0.514
Dimensions (see 2nd image):
- A (inch) 2-11/64"
- B (inch) 15/16"
- C (inch) 15/32"
- D (inch) 15/16"
- D diameter (inch) 15/32"
- E (inch) 25/64"
- M (inch) 2-31/64"
